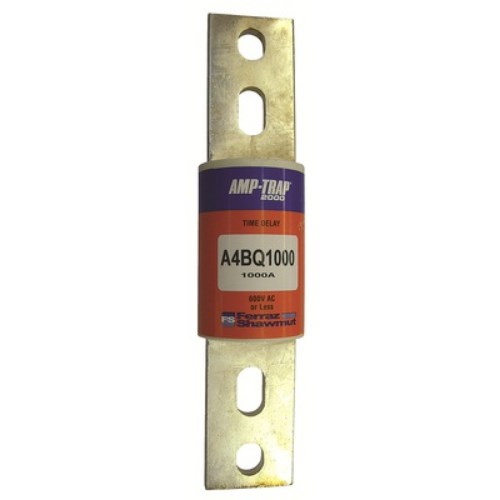

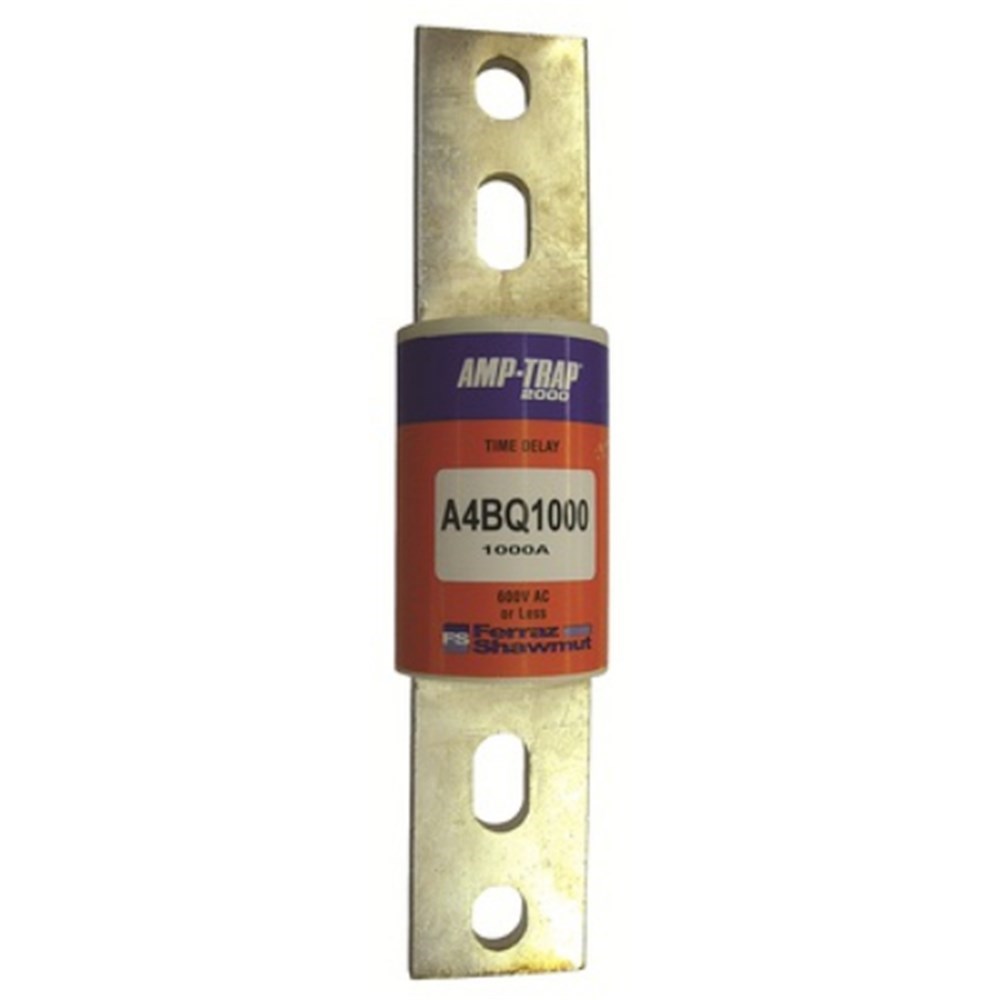

When selecting an industrial component like a fuse, it's crucial to consider its specifications and how they align with your system's requirements. The UL North American fuse in question offers a robust solution for high-demand applications, ensuring safety and reliability in various settings.
This fuse is designed to handle a rated current of 1350 A, making it suitable for heavy-duty operations where substantial electrical flow is required. It supports both AC and DC systems with rated voltages of 600/500 VAC/VDC, providing versatility across different power setups. Its ability to operate at a rated frequency of 50/60 Hz adds further flexibility for integration into diverse environments.
One of the standout features of this fuse is its impressive breaking capacity of 200 kA. This ensures that even under extreme fault conditions, the fuse can interrupt excessive currents effectively, protecting equipment from potential damage.
Physically, the product has been engineered with practicality in mind. With a length of 97 mm and body dimensions measuring 3 inches in diameter by 10.75 inches in length, it fits seamlessly into compact spaces without compromising performance. The weight stands at just under six pounds (5.97 lb), which facilitates easier handling during installation or replacement processes.
The construction materials underscore the product's durability and efficiency: GMG body material paired with silver-plated copper terminals ensure excellent conductivity while minimizing resistance losses. The bolt-in mounting type provides secure attachment within panels or enclosures, reducing risks associated with vibrations or accidental dislodgement.
Blade terminal types are utilized here for straightforward connections that maintain strong contact integrity over time. Additionally, the insulation material matches the body's GMG composition, promoting consistent thermal management and safeguarding against environmental factors that could impact performance.
Belonging to Fuse Class L demonstrates its suitability for high-capacity circuits typically found in industrial applications such as manufacturing plants or large commercial installations.
In summary, this UL North American fuse delivers on key fronts: safety through high breaking capacity; versatility via wide voltage compatibility; ease-of-use thanks to practical design considerations; and durability through quality materials—all essential attributes when considering components for critical infrastructure projects.
