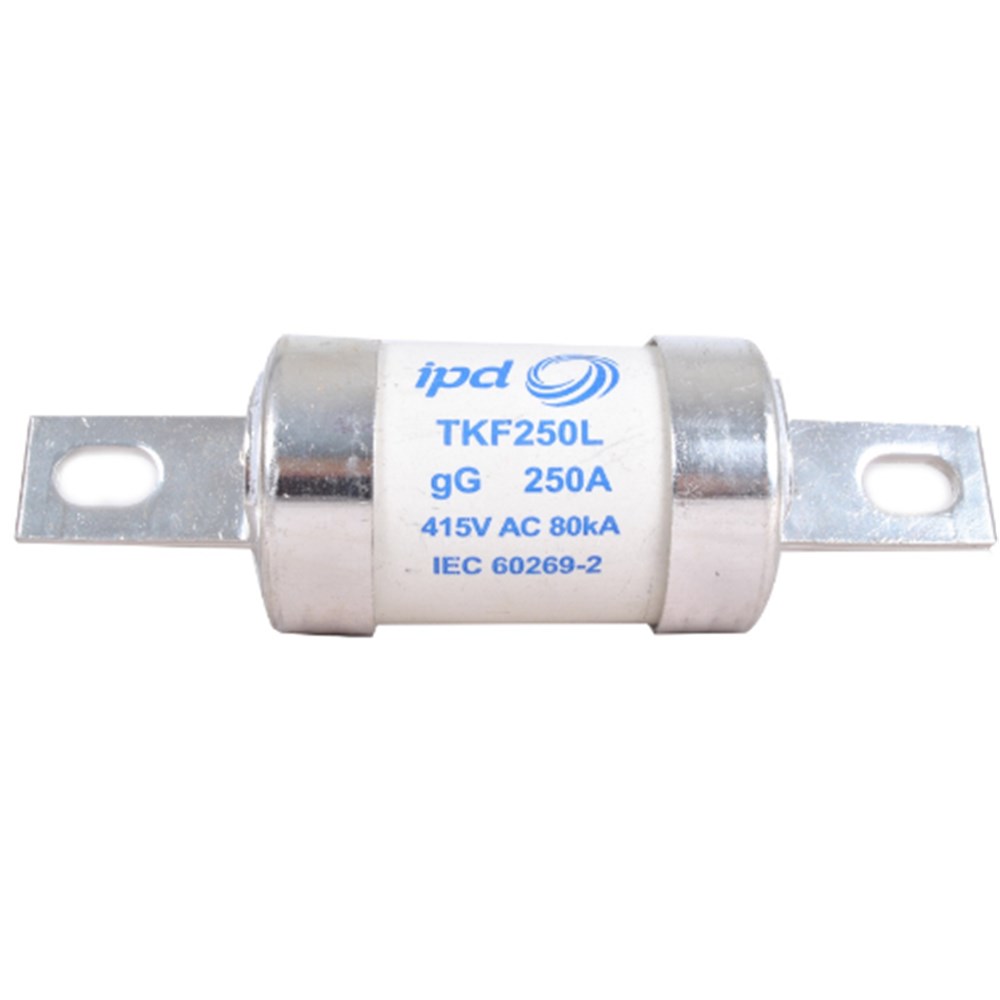

IPD TKF250L FUSE LINK 250A 415VAC CENTRE TAG 111mm FIXING CENTRES 80kA

Product Code: TKF250L

The TKF_L centre bolted tags-2hole fixing BS fuse links (in sizes B1 to B4) are designed for general industrial applications. They comply with the standard BS88-2 and IEC 60269-2. These fuse links have a breaking range and utilisation category of gG, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified to 80 kA. The rated current is 250A and the voltage is 415VAC.

Technical Specifications

Carton Quantity 1
Brand IPD
Breaking Capacity AC (kA) 80
Breaking Capacity DC (kA) 40
Rated Current (A) 250
Rated Voltage AC (V) 415
Body Diameter (mm) 54.0
Fixing Centres (mm) 111
Utilisation Category gG
