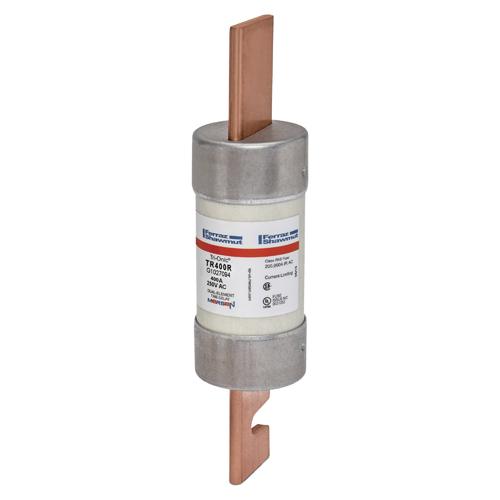

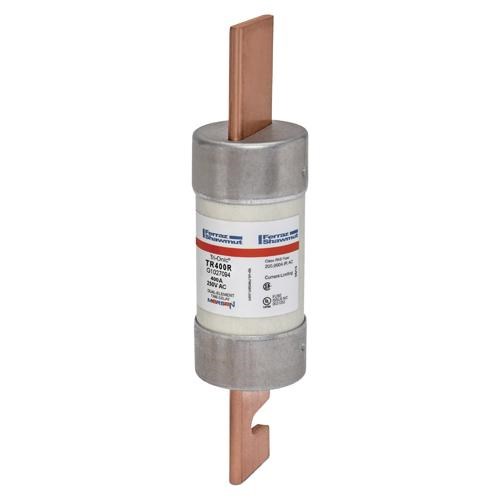

Mersen TR400R Time Delay Current-Limiting Fuse 400A 250VAC/DC 50mmDia 123mm L Class RK5 200kA Clip Mount Blade

Product Code: TR400R

  • Rated current of 400 A for robust performance
  • Supports 250 VAC/VDC applications
  • High breaking capacity at 200 kA
  • Blade terminals for secure connections
  • Compact design with clip mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Current (A) 400
Rated Voltage DC (V) 250
Rated Voltage AC (V) 250
Body Size (mm) 53 x 123
Functionality Time Delay
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 20
Product Type Time Delay Current-Limiting Fuse
Brand MERSEN
Body Material Poly Tube
Body Size 2.06 in Dia x 8.63 in L
Body Style Blade
Breaking Capacity 200 kA
Connection/Terminal Material Tin Plated Copper
Diameter 50 mm
Fuse Class Class RK5
Insulation Material PolyTube
Length 123 mm
Mounting Type Clip
Rated Current 400 A
Rated Frequency 50/60 Hz
Rated Voltage 250 VAC/VDC
Terminal Type Blade
Weight 1.64 lb

Description

TR-R current-limiting time-delay blade ferrule type fuses provide overcurrent protection for motors, transformers, service entrance equipment, feeders, and branch-circuits. These fuses have a time-delay characteristic that safely handles harmless starting currents and inrush currents associated with motors and transformers. They have a voltage rating of 250VAC and a rated current of 400A.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
