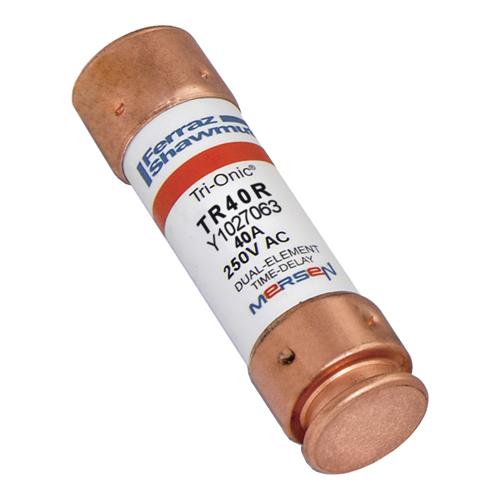

  • MERSEN TR40R FUSE LINK 40A 250VAC CLASS RK-5 DELAY 21X76mm REJECTION FERRULE

MERSEN TR40R FUSE LINK 40A 250VAC CLASS RK-5 DELAY 21X76mm REJECTION FERRULE

Product Code: TR40R

The TR-R current-limiting time-delay rejection ferrule type fuses are designed to provide overcurrent protection for motors, transformers, service entrance equipment, feeders, and branch-circuits. These fuses have a time-delay characteristic that can safely handle the harmless starting currents and inrush currents typically associated with motors and transformers. They have a voltage rating of 250VAC and a rated current of 40A.

Technical Specifications

Brand MERSEN
Body Size (mm) 21 x 76
Body Style Ferrule
Functionality Time Delay
Fuse Class Class RK5
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 20
Rated Current (A) 40
Rated Voltage AC (V) 250
Rated Voltage DC (V) 250
