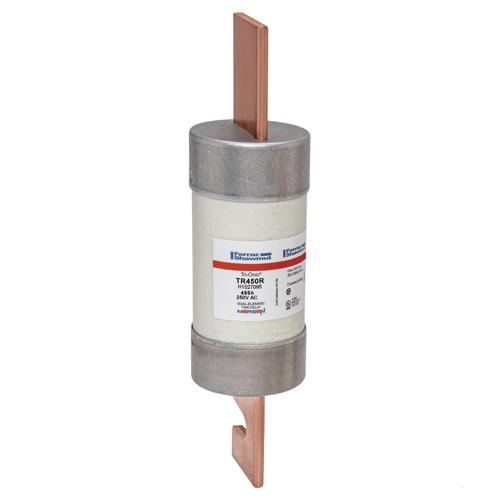

Mersen TR450R Time Delay Current-Limiting Fuse 450A 250/160VAC/DC 66mmDia 150mm L Class RK5 200kA Clip Mount Blade

Product Code: TR450R

  • Rated Current: 450 A
  • Voltage: 250/160 VAC/VDC
  • High Breaking Capacity: 200 kA
  • Fuse Class RK5 for reliability
  • Tin Plated Copper terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 66 x 150
Functionality Time Delay
Rated Current (A) 450
Rated Voltage DC (V) 160
Rated Voltage AC (V) 250
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 20
Product Type Time Delay Current-Limiting Fuse
Brand MERSEN
Body Material Poly Tube
Body Size 2.56 in Dia x 10.38 in L
Body Style Blade
Breaking Capacity 200 kA
Connection/Terminal Material Tin Plated Copper
Diameter 66 mm
Fuse Class Class RK5
Insulation Material PolyTube
Length 150 mm
Mounting Type Clip
Rated Current 450 A
Rated Frequency 50/60 Hz
Rated Voltage 250/160 VAC/VDC
Terminal Type Blade
Weight 2.933 lb

Description

The TR-R current-limiting time-delay blade ferrule type fuses are designed to provide overcurrent protection for motors, transformers, service entrance equipment, feeders, and branch-circuits. These fuses have a time-delay characteristic that can safely handle the harmless starting currents and inrush currents typically associated with motors and transformers. They have a voltage rating of 250VAC and a rated current of 450A.
