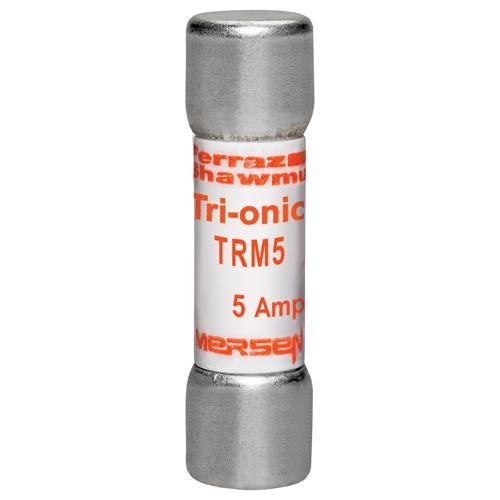

Mersen TRM5 Time Delay Midget Fuse 5A 250VAC 10mm Dia 38mm L 100kA Ferrule 10 in Dia x 38mm L Clip Mount

Product Code: TRM5

  • Rated for 5 A and 250 VAC
  • Compact design: 10 mm x 38 mm
  • High breaking capacity: 100 kA
  • Ferrule terminals with tin-plated copper
  • Suitable for 50/60 Hz applications
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 10 x 38
Functionality Time Delay
Rated Current (A) 5
Rated Voltage AC (V) 250
Interrupting Rating AC (kA) 10
Product Type Time Delay Midget Fuse
Brand MERSEN
Body Material GMG
Body Size 10 in Dia x 38 mm L
Body Style Ferrule
Breaking Capacity 100 kA
Connection/Terminal Material Tin Plated Copper
Diameter 10 mm
Insulation Material GMG
Interrupt Rating 10 kA
Length 38 mm
Mounting Type Clip
Rated Current 5 A
Rated Frequency 50/60 Hz
Rated Voltage 250 VAC
Terminal Type Ferrule
Weight 0.013 lb

Description

The TRM time-delay midget ferrule type fuses are designed to protect small motors, small transformers, and other high inrush loads. They are also suitable for various 250 volt applications. These fuses have a voltage rating of 250VAC and a rated current of 5A. They can interrupt short circuit currents up to 10kA. Additionally, they are UL listed to standard 248-14.
