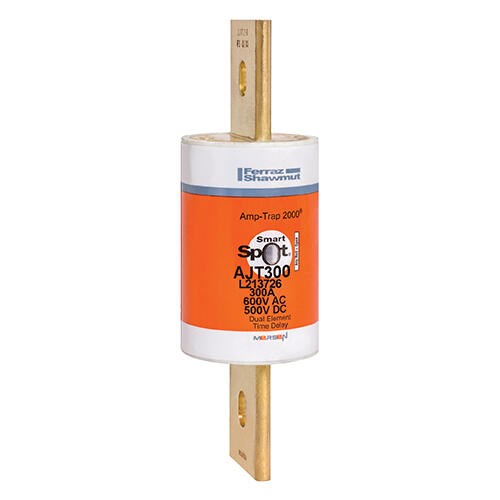

Mersen AJT300 Power Fuse 300A 600/500VAC/DC Class J 54mm Dia x 181.1mm L Blade Terminal Class J 200kA

Product Code: AJT300

  • 300A rated current for high power needs
  • 600/500 VAC/VDC voltage rating
  • Clip or bolted mounting flexibility
  • High breaking capacity of 200 kA
  • Durable GMG body and insulation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 54 x 85
Functionality Time Delay
Rated Current (A) 300
Rated Voltage DC (V) 500
Rated Voltage AC (V) 600
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Product Type Time Delay Power Fuse
Brand MERSEN
Body Material GMG
Body Size 54 mm Dia x 181.1 mm L
Body Style Bolted Tag
Breaking Capacity 200 kA
Connection/Terminal Material Brass
Fuse Class Class J
Insulation Material GMG
Mounting Type Clip, Bolted
Rated Current 300 A
Rated Frequency 50/60 Hz
Rated Voltage 600/500 VAC/VDC
Terminal Type Blade
Weight 0.8119 kg

Description

AJT Time delay Class 'J' ferrule type fuses are designed to handle typical motor and transformer inrush currents. They have time-delay characteristics and provide superior current-limiting ability. These fuses have a voltage rating of 600VAC/500VDC and a rated current of 300A.
