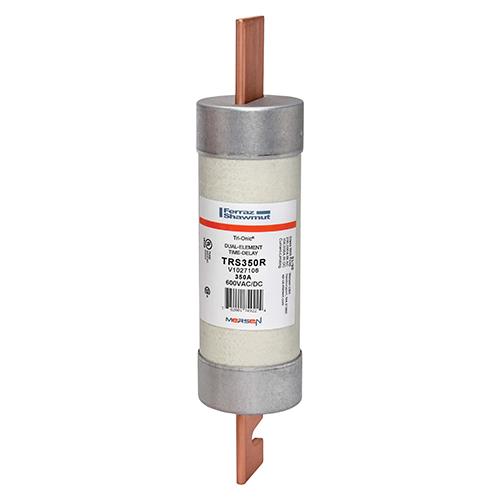

Mersen TRS350R Time Delay Current-Limiting Fuse 350A 600VAC/DC 66mmDia 199mm L Class RK5 200kA Clip Mount Blade

Product Code: TRS350R

  • Rated current of 350 A, suitable for high demand
  • Supports 600 VAC/VDC applications
  • Impressive breaking capacity of 200 kA
  • Blade terminals with tin plated copper connections
  • Compact design: 199 mm length, 66 mm diameter
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Current (A) 350
Rated Voltage DC (V) 600
Rated Voltage AC (V) 600
Body Size (mm) 66 x 199
Functionality Time Delay
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Product Type Time Delay Current-Limiting Fuse
Brand MERSEN
Body Material Poly Tube
Body Size 2.56 in Dia x 11.63 in L
Body Style Blade
Breaking Capacity 200 kA
Connection/Terminal Material Tin Plated Copper
Diameter 66 mm
Fuse Class Class RK5
Insulation Material PolyTube
Length 199 mm
Mounting Type Clip
Rated Current 350 A
Rated Frequency 50/60 Hz
Rated Voltage 600 VAC/VDC
Terminal Type Blade
Weight 3.14 lb

Description

The TRS-R current-limiting time-delay blade ferrule type fuses are designed to provide overcurrent protection for motors, transformers, service entrance equipment, feeders, and branch-circuits. These fuses have a time-delay characteristic that can safely handle the harmless starting currents and inrush currents typically associated with motors and transformers. They have a voltage rating of 600VAC and a rated current of 350A.
