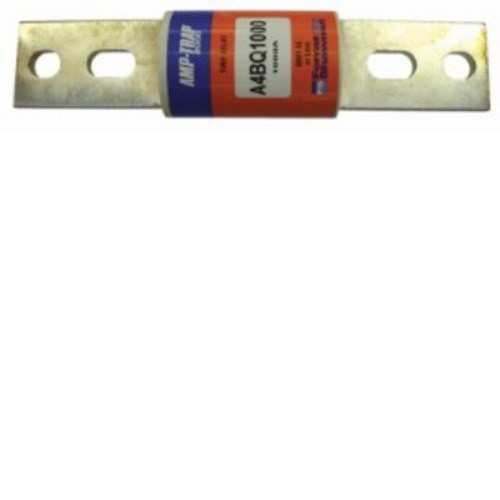

When selecting components for industrial and commercial electrical systems, understanding the technical specifications of each product is crucial. The UL North American fuse offers a solid choice for those seeking reliability and efficiency in their circuit protection needs.
This fuse is designed with a rated current of 601 A, making it suitable for handling substantial electrical loads. Its rated voltage spans both AC and DC applications at 600/500 VAC/VDC, providing versatility across different power systems. The breaking capacity stands at an impressive 200 kA, ensuring robust performance during fault conditions by safely interrupting high fault currents.
The physical dimensions of this fuse are well-suited to various installation requirements. With a body size measuring 2 inches in diameter and 8.63 inches in length, alongside an overall length of 97 mm, it fits seamlessly into existing setups without demanding extensive modifications. This is complemented by its bolt-in mounting type that ensures secure attachment within your system.
Constructed from GMG material, the body provides durability and resistance to environmental factors while maintaining safety standards. The insulation material also employs GMG, adding another layer of protection against electrical hazards. For optimal conductivity and minimal energy loss, the connection terminals are crafted from silver-plated copper.
Operating efficiently at frequencies of both 50 Hz and 60 Hz makes this fuse adaptable to various regional power grids worldwide. Additionally, featuring blade-type terminals allows for straightforward integration into existing configurations or new installations.
Weighing just 3.77 lb., this fuse combines lightweight characteristics with heavy-duty performance—ideal for environments where space and weight considerations are paramount but do not compromise on capability or safety standards.
In summary, this Class L UL North American-rated fuse delivers exceptional performance across a range of industrial applications thanks to its high current rating, versatile voltage compatibility, strong breaking capacity, durable construction materials like GMG and silver-plated copper terminals—all packed into a compact form factor designed for easy installation via bolt-in mounts with blade-type connections.
Whether you're upgrading existing infrastructure or planning new projects requiring reliable overcurrent protection solutions tailored toward large-scale operations—the technical specifications provided here should help inform your decision-making process effectively without overwhelming you with unnecessary complexity or jargon beyond what’s essential about its capabilities as described above.
