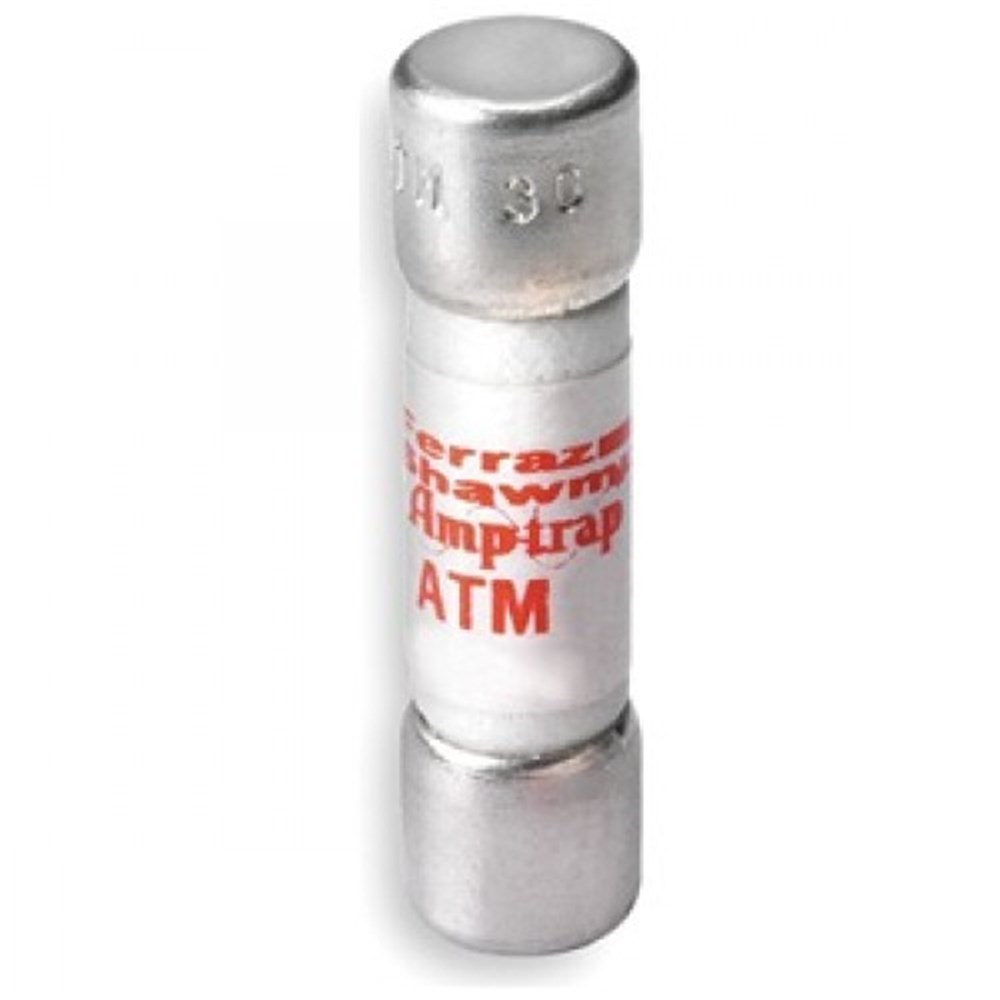

Mersen ATM7 Fast-Acting Midget Fuse 7A 600VAC/DC 0.41 in Dia 1.5 in L 100kA Interrupt Ferrule

Product Code: ATM7

  • Rated for 7 A and 600 VAC/VDC
  • Compact size: 1.5 in length, 0.41 in diameter
  • High interrupt rating of 100 kA
  • Durable GMG body with tin-plated copper terminals
  • Clip mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 10 x 38
Functionality Fast Acting
Rated Current (A) 7
Rated Voltage AC/DC (V) 600
Interrupting Rating AC (kA) 100
Interrupting Rating DC (kA) 100
Product Type Fast-Acting Midget Fuse
Brand MERSEN
Body Material GMG
Body Style Ferrule
Connection/Terminal Material Tin Plated Copper
Diameter 0.41 in
Insulation Material GMG
Interrupt Rating 100 kA
Length 1.5 in
Mounting Type Clip
Rated Current 7 A
Rated Frequency 50/60 Hz
Rated Voltage 600 VAC/VDC
Terminal Type Ferrule
Weight 0.017 lb

Description

ATM midget fast-acting ferrule type fuses are designed to provide additional protection for small motors and transformers. These fuses have a voltage rating of 600VAC/DC and a rated current of 7A. They are suitable for a wide range of applications, including photovoltaic and solar systems. With the ability to interrupt short circuit currents up to 100kA/AC and 100kA/DC, these fuses offer reliable protection. Additionally, they are UL listed to standard 248-14, ensuring their quality and safety.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
