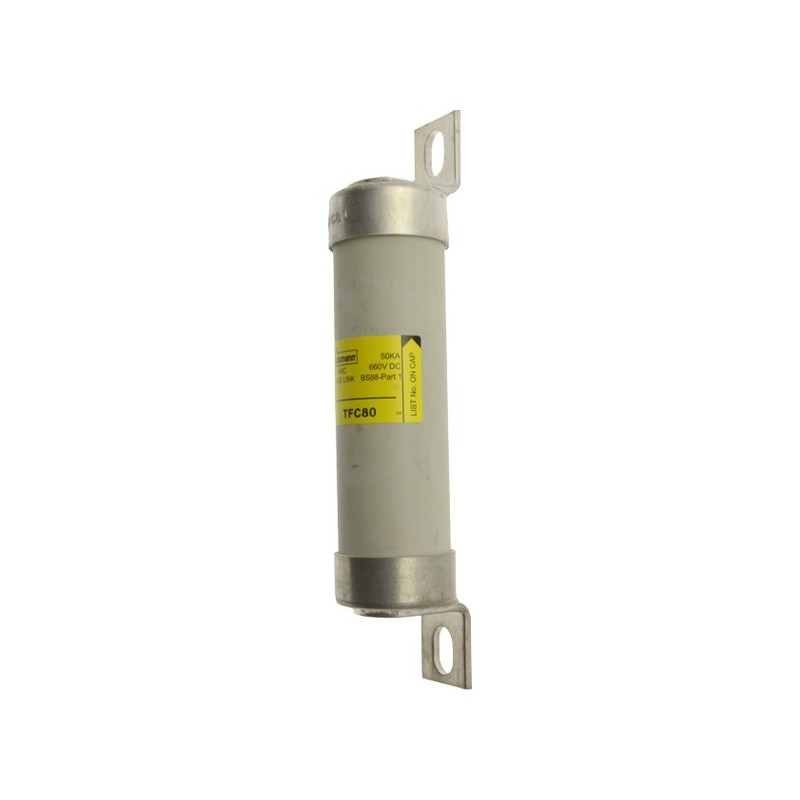

When it comes to industrial and commercial electrical systems, choosing the right components is crucial for ensuring both performance and safety. The Bolt-In fuse detailed here is designed with these priorities in mind, offering a reliable solution for various applications.
This fuse is rated for a current of 80 A, making it suitable for medium-duty circuits where consistent performance under load is essential. With a rated voltage of 1500 VAC, it's equipped to handle high-voltage environments typical in industrial settings. This makes it an ideal component for systems requiring robust protection against overcurrent conditions.
One of the notable features of this Bolt-In fuse is its impressive breaking capacity of 63 kA. This ensures that even in the event of a short circuit or fault condition, the fuse can safely interrupt extremely high current flows without damaging connected equipment or posing safety risks to personnel.
The standards and approvals this product adheres to include IEC 60269-1 and BS 2692. These certifications demonstrate compliance with international benchmarks for electrical safety and reliability, providing peace of mind that you're working with a component that's been rigorously tested and validated.
In terms of physical specifications, this fuse has been designed with practicality in mind. It weighs just 0.0905 kg, which simplifies handling during installation or replacement processes. The mounting type specified as 'Holder' allows for straightforward integration into existing setups without necessitating extensive modifications.
For those concerned with space constraints or specific installation requirements, the fixing centres measure at 168 mm while the fuse itself measures at 40 mm in diameter by 192 mm in length. These dimensions are critical when planning layouts within control panels or other confined spaces where precision matters.
Overall, this Bolt-In fuse offers an excellent balance between technical capability and practical design considerations. Whether you're upgrading existing infrastructure or setting up new installations from scratch, it's worth considering how this component fits into your overall system architecture to ensure optimal performance and compliance with relevant standards.
