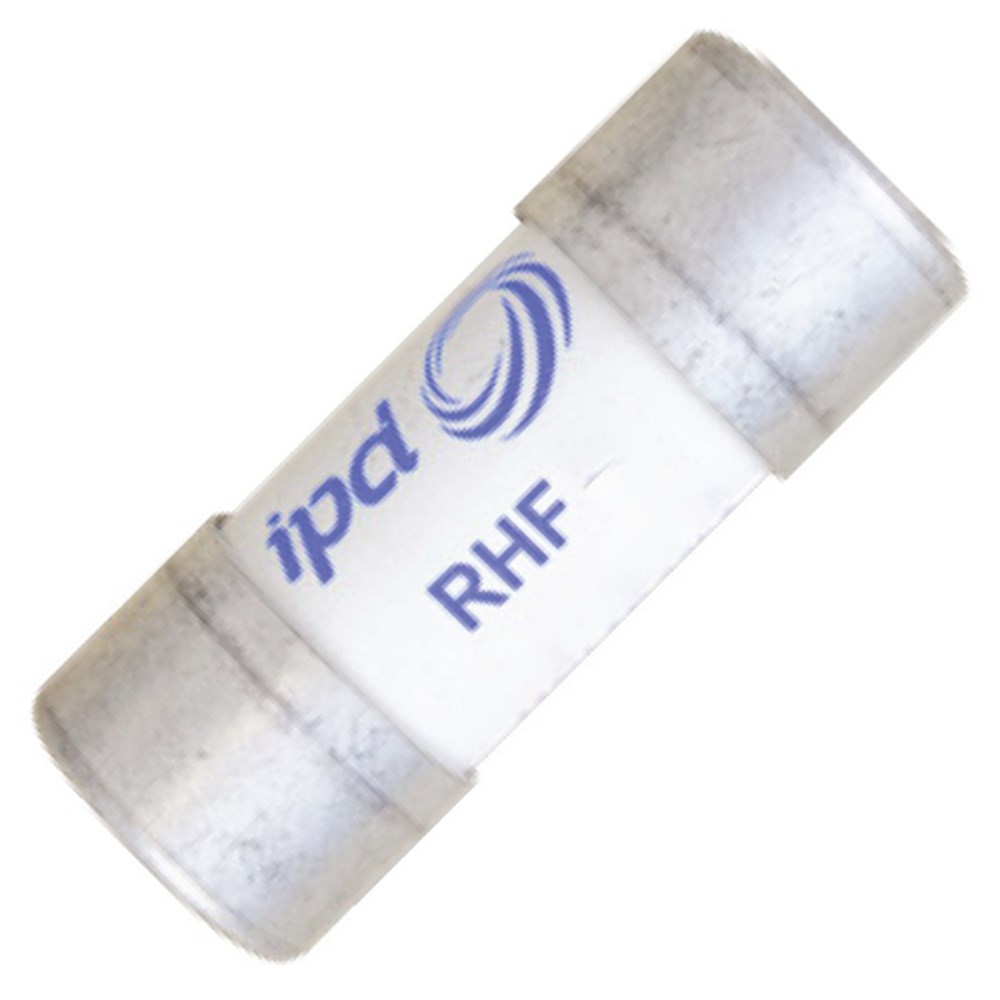

IPD CONSUMER UNIT FUSE-LINK, FERRULE TYPE 415V AC 22x57mm 80A RHF80

Product Code: RHF80

RHF fuse link is specifically designed for the protection of domestic service installations. Breaking capacity is tested up to 33 kA. Rated current and voltages are accordingly 80A, 415VAC.

Technical Specifications

Brand IPD
Body Style Cylindrical
Breaking Capacity (kA) 33
Breaking Capacity AC (kA) 33
Clearing I²t at Rated Voltage (kA²s) 30
Current Rating (A) 80
Diameter (mm) 22
Dimensions (mm) 22D x 57L
Optical Defect Indication No
Pack Quantity 10
Power Dissipation at In (W) 5.3
Rated Current (A) 80
Rated Voltage AC (V) 415
Standards AS60269-3
Standards and Approvals IEC 60269-3, BS 1361
Utilisation Category gG
With Striker No
