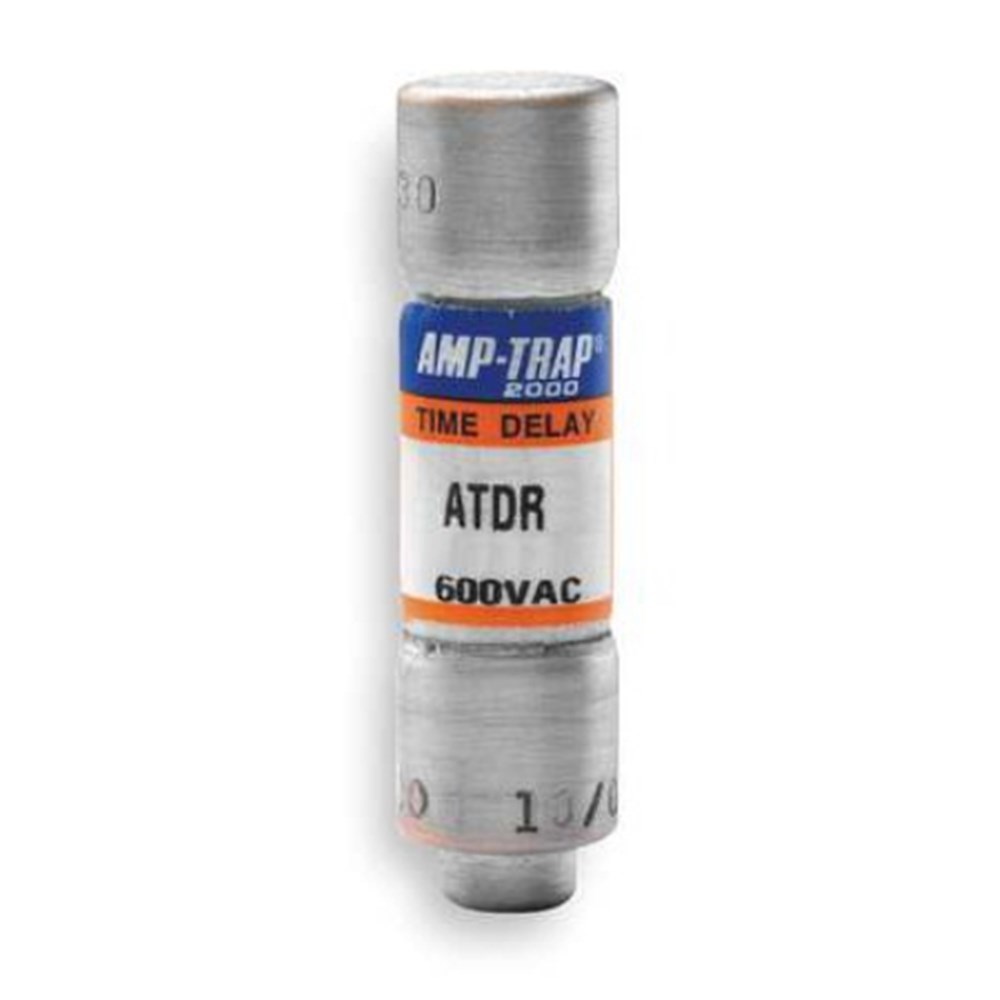

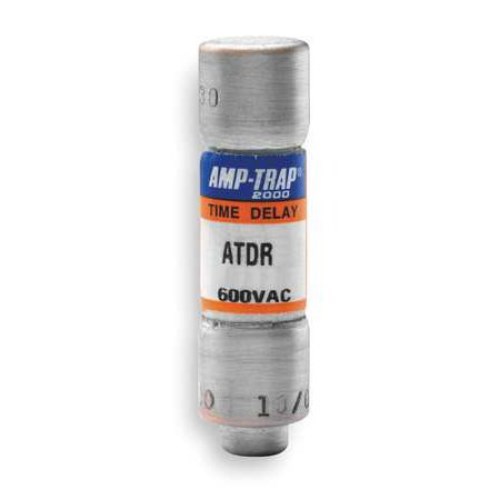

When selecting components for industrial and commercial electrical systems, understanding the specifications of each product is crucial. The UL North American fuse we're discussing fits seamlessly into this requirement, offering a blend of reliability and performance that ensures your system operates smoothly.
This fuse boasts a rated current of 9 A, making it suitable for various applications where moderate current protection is essential. With a rated voltage capacity of 600/300 VAC/VDC, it can handle both AC and DC circuits effectively, providing versatility across different power systems.
One striking feature is its impressive breaking capacity of 200 kA. This high breaking capacity indicates the fuse's ability to safely interrupt significant fault currents without damage or risk to other components in the circuit. It's an attribute that enhances safety and reliability in demanding environments.
The mounting type is clip-based, which simplifies installation and replacement processes. This design choice supports quick maintenance tasks—an important consideration for minimizing downtime in busy industrial settings.
In terms of size, the fuse has a body diameter of 10.4 mm and a length of 38.1 mm, dimensions that ensure compatibility with standard fuse holders while maintaining compactness within electrical panels or assemblies.
Constructed from GMG (Glass-Melamine-Glass) material for both its body and insulation, this fuse offers excellent thermal stability and durability under varying operating conditions. The use of tin-plated copper for connection terminals further enhances conductivity while resisting corrosion—a critical factor in ensuring long-term performance.
The ferrule terminal type facilitates secure connections within your electrical setup, promoting consistent contact even under vibration or mechanical stress conditions often encountered in industrial environments.
Operating at a frequency range between 50/60 Hz allows this UL North American Class CC fuse to integrate effortlessly into global systems adhering to these common frequencies.
Weighing just 0.0077 kg, its lightweight nature does not compromise on robustness but rather complements installations where weight considerations are necessary without sacrificing operational integrity.
Overall, this product presents itself as a dependable choice for those requiring efficient overcurrent protection with robust construction suited to diverse applications across industries seeking reliable solutions aligned with technical demands.
