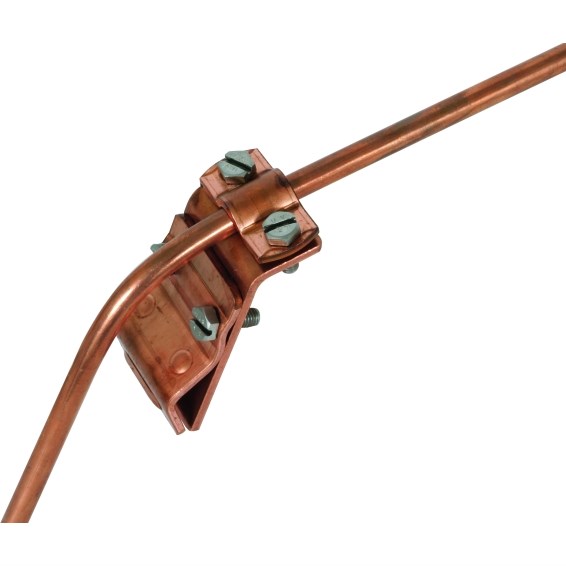

DEHN 338007 Gutter Clamp W/Twin Screw Cleat 7-10mm M6 x 16mm M6 x 10mm Screw Copper

Product Code: 338007

  • Copper material ensures durability
  • Suitable for 7 mm dia round conductors
  • Clamping range from 7 to 10 mm
  • Handles lightning currents up to 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 75W x 75H x 3D
Reference No. 338007
Suitable For Diameter round conductor 7mm
Weight (kg) 0.19
Clamping Range (mm) Rd - 7-10
Surface Protection Untreated
Rod Diameter (mm) 7 - 10
Clamping Range Rd/Rd (mm) 130
Product Type Gutter Clamp With Twin Screw Cleat
Brand DEHN
Clamping Range 7-10 mm
Connection Type M6 x 16 mm, M6 x 10 mm Screw
Connector Type Gutter Clamp
Depth 3 mm
Finish Untreated
Height 75 mm
Lid Screw Type Hexagon Screw
Lightning Current Carrying Capability 100 kA
Material Copper
Screw Size M6 x 16mm / M6 x 10mm
Standards and Approvals EN 62561-1
Suitable For Use With 7 mm Dia Round Conductor
Weight 0.19 kg
Width 75 mm
