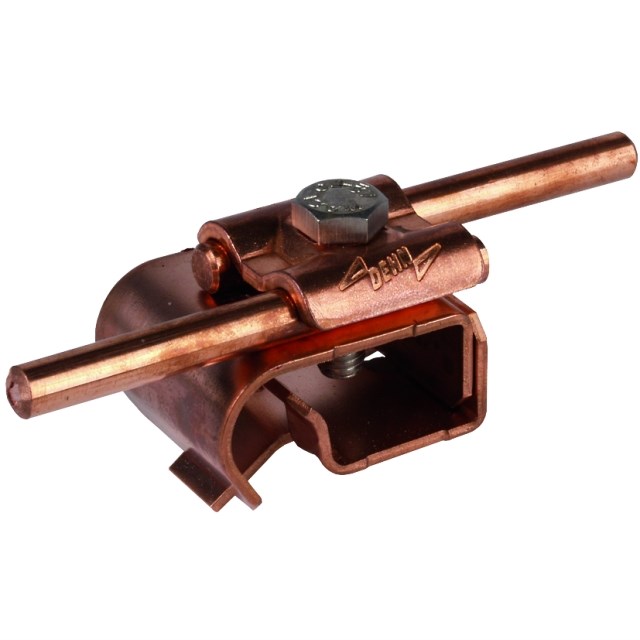

DEHN 339057 Gutter Clamp W/Double Cleat 8-10mm M8 x 20mm M8 x 25mm Screw Copper

Product Code: 339057

  • Compatible with 8 mm round conductors
  • Copper material ensures durability
  • Handles lightning currents up to 100 kA
  • Fits clamping range of 8-10 mm
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 40W
Reference No. 339057
Thickness (mm) 2
Suitable For Diameter round conductor 8mm
Weight (kg) 0.15
Width (mm) 40
Class (Lightning Current Carrying Capability) (kA) 100
Weight (g) 150
Surface Protection Untreated
Gross Weight (g) 154
Rod Diameter (mm) 8
Clamping Range Rd/Rd (mm) 160
Clamping Range Bead (mm) 16-22
Clamping Range (mm) 16-22
Product Type Gutter Clamp With Double Cleat
Brand DEHN
Clamping Range 8-10 mm
Connection Type M8 x 20 mm, M8 x 25 mm Screw
Connector Type Gutter clamp
Finish Untreated
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 100 kA
Material Copper
Screw Size M8
Standards and Approvals EN 62561-1
Suitable For Use With 8 mm Dia Round Conductor
Thickness 2 mm
Weight 154 g
Width 40 mm
