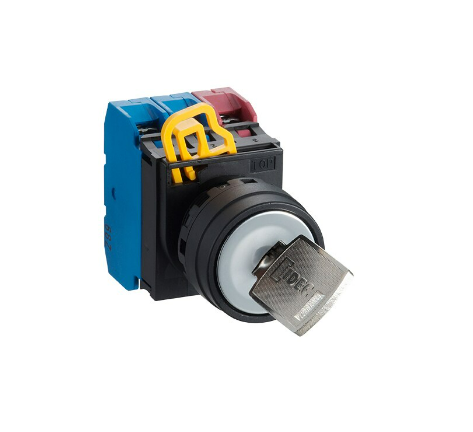

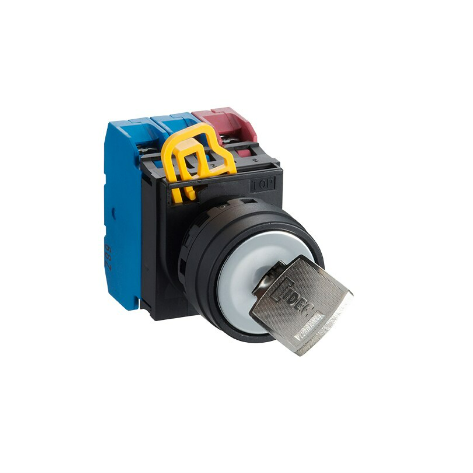

IDEC YW1K-2AE10-HS Selector Switch 2Position 1NO Left Center Right Key Round Plastic M3.5 Screw Terminal 30mm W

Product Code: YW1K-2AE10-HS

  • Key selector switch with 1NO contact config
  • Rated current of 10 A, freq 50/60 Hz
  • IP20/IP65 protection for robust use
  • Operates in temp range -20 to 55°C
  • Fits standard 22 mm mounting hole
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 1
Product Type Selector Switch
Brand IDEC
Series YW
Actuator Type Key
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 2
Operation Position Left, Centre, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1K-2AE10-HS is a compact key selector switch designed for efficient space utilization with its 10mm thick contact blocks. This 22mm, 2-position maintained switch includes 1 Normally Open (NO) contact and features a removable operator for easy maintenance. Its lightweight design is complemented by a durable plastic bezel, making it suitable for various industrial applications.
