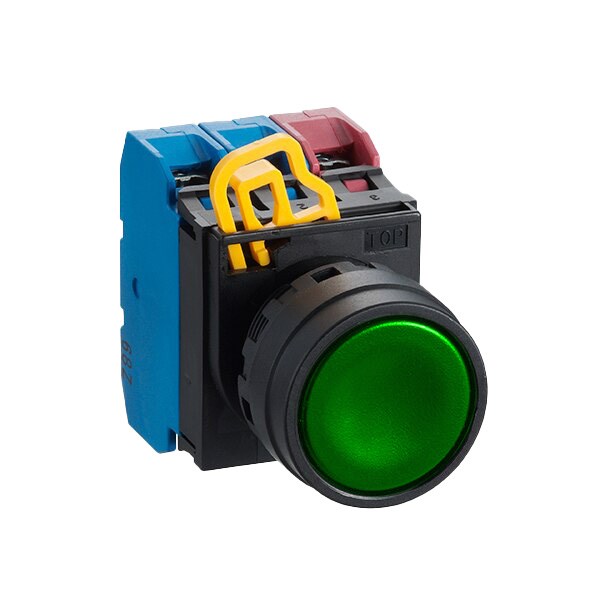

IDECYW1B-M1E10G-HS Non-Illuminated Pushbutton 22mm Flush Momentary Green 1NO

Product Code: YW1B-M1E10G-HS

  • Non-illuminated, flush green pushbutton
  • IP65 front protection, durable design
  • Rated for 600V insulation and 10A current
  • Long mechanical life: up to 5 million ops
  • Certified: cULus, CE, UKCA, CCC
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-closed Contacts 1
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Flush
Bezel Material Plastic
Button Colour Green
Colour Green
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 56.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Non-Illuminated
Insulation Resistance 100 MOhm
Mechanical Life 5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Mode of Operation Momentary
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1B-M1E10G-HS is a non-illuminated, momentary pushbutton designed for efficient use of space with its 10mm thick contact blocks. It features a single Normally Open (NO) contact and a green operator that is removable for easy maintenance. The pushbutton's compact and lightweight design is complemented by a durable metal bezel, ensuring longevity and reliability in various industrial applications.
