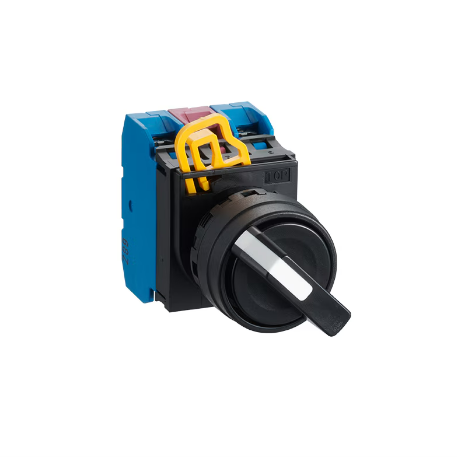

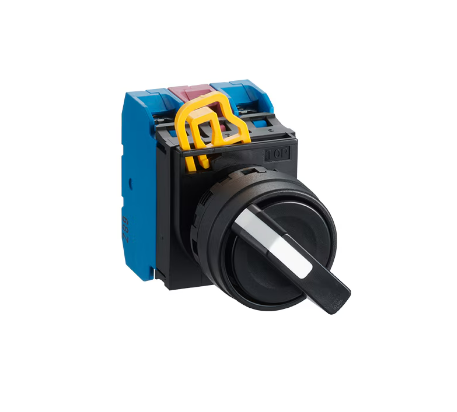

IDEC YW1S-33E20-HS Selector Switch 3Position 2NO Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H 69.8mm D

Product Code: YW1S-33E20-HS

  • Selector switch with 2NO contacts
  • Rated for 10 A, 600 V insulation
  • Operates at -20 to 55°C
  • IP20/IP65 protection rating
  • Two-way spring return operation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 2
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 2NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Two-Way Spring Return
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-33E20-HS is a compact IPD-selector switch designed for efficient use of space with its 10mm thick contact blocks. This 22mm, 3-position switch features a spring return two-way mechanism and comes equipped with 2 Normally Open (NO) contacts. Its removable operator enhances flexibility during installation or maintenance. Additionally, the integrated pilot lights have a large lens to provide a broad viewing angle, ensuring clear visibility of the switch status from various positions. Lightweight and streamlined, this selector switch is an ideal solution for control panels where space is at a premium.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
