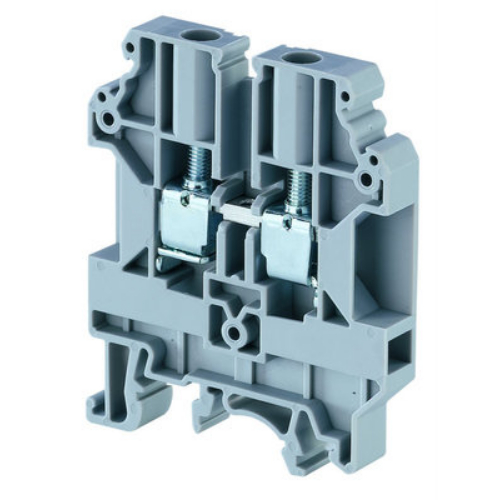

CONNECTWELL CHV6U HIGH VOLTAGE (1000V) TERMINAL BLOCK SCREW CLAMP 0.2-6mm² 1000V/41A
Zoom
CONNECTWELL CHV6U HIGH VOLTAGE (1000V) TERMINAL BLOCK SCREW CLAMP 0.2-6mm² 1000V/41A
Product Code: CHV6U
This high voltage terminal block is designed for use with stranded conductors ranging from 0.2mm² to 6.0mm². It has a screw clamp for secure connections and can handle voltages up to 1000V and currents up to 41A. The terminal block has dimensions of 52mm (L) x 8mm (W) x 63.4mm (H) and comes in a grey colour. It can be mounted on DIN 32, DIN 35, and DIN 35-15 rails, providing flexibility in installation options.
Technical Specifications
Brand
CONNECTWELL
Colour
Grey
Conductor Cross Section - Stranded (mm²)
0.2 - 4
Dimensions (mm)
52L x 8Wx 63.4H
Mounting Type
DIN Rail
Rated Current (A)
41
Rated Voltage (V)
1000
Screw Size
M3.5
Tightening Torque (Nm)
0.8
Documents
Product catalogue (Flipbook)
