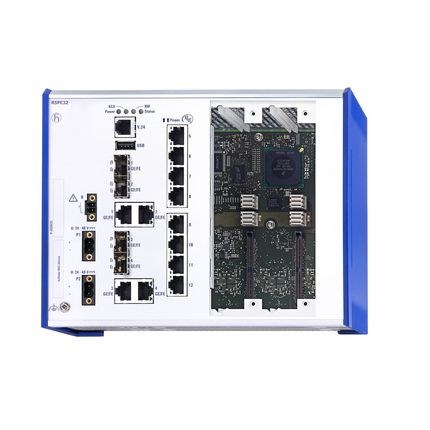

Hirschmann 942 084-999-003 Managed Ethernet Switch 24xFast Ethernet 8x10/100 Twisted Pair RJ45 24-48VDC

Product Code: 942 084-999-003

  • Managed switch with 24 Fast Ethernet ports
  • Includes 4 Gigabit Ethernet & 4 combo ports
  • Operates within 0 to 60°C temperature range
  • DIN Rail mounting for easy installation
  • Complies with CE, EN60950-1, EN61131-2, FCC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Managed DIN Rail Industrial Ethernet Switch
Brand HIRSCHMANN
Series RSP
Degree of Protection IP30
Depth 115 mm
Height 164 mm
Mounting Type DIN Rail
Number of 100Mb Ports 24
Number of 1GB Ports 4
Number of Ethernet Ports 12
Number of Fibre Ports 16
Number of Ports 24 x Fast Ethernet, 4 x Gigabit Ethernet, 4 x 10/100/1000 Combo Port, 8 x 10/100 Twisted Pair RJ-45
Operational Temperature 0 to 60 deg C
Rated Power 16 W
Rated Voltage 24-48 VDC
Standards and Approvals CE, EN60950-1, EN61131-2, FCC
Switch Type Switch - Managed
Width 209 mm

Description

<p>The RSP series managed switch is a robust and reliable solution for industrial and commercial applications, offering a comprehensive suite of features tailored to meet the demands of modern network infrastructures. Designed with versatility in mind, this switch supports a rated power of 16 W and operates efficiently within a voltage range of 24-48 VDC. Its DIN rail mounting type ensures easy installation and integration into existing systems.</p><p>With dimensions measuring 209 mm in width, 164 mm in height, and 115 mm in depth, the compact design doesn&amp;#39;t compromise on performance or functionality. The unit boasts an IP30 degree of protection, making it suitable for environments where dust resistance is crucial while ensuring continuous operation between temperatures of 0 to 60 degrees Celsius.</p><p>This managed switch is equipped with an impressive array of connectivity options: 24 Fast Ethernet ports provide ample capacity for conventional networking needs; additionally, there are four Gigabit Ethernet ports for high-speed data transfer requirements. For flexibility in network configurations, the device also includes four combo ports supporting speeds from 10/100/1000 Mbps as well as eight twisted pair RJ-45 ports operating at up to 100 Mbps.</p><p>Compliance with CE standards along with EN60950-1 and EN61131-2 certifications guarantees adherence to international safety regulations while FCC approval confirms its suitability for use across various regions without interference issues. This makes the RSP series managed switch not only versatile but also dependable when it comes to maintaining seamless communication within your network infrastructure.</p><p>Whether you&amp;#39;re upgrading an existing setup or building new networks from scratch, this product offers both current capabilities alongside future-proofing considerations thanks largely due its extensive port selection combined alongside rigorous standard approvals ensuring long-term reliability under varying conditions over time - all factors which contribute toward maximizing overall value delivered by investment made into acquiring one such unit today!</p>
