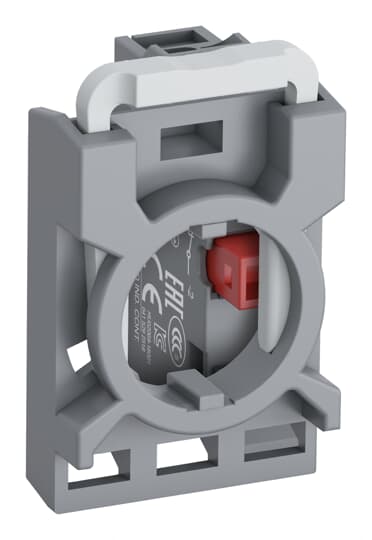

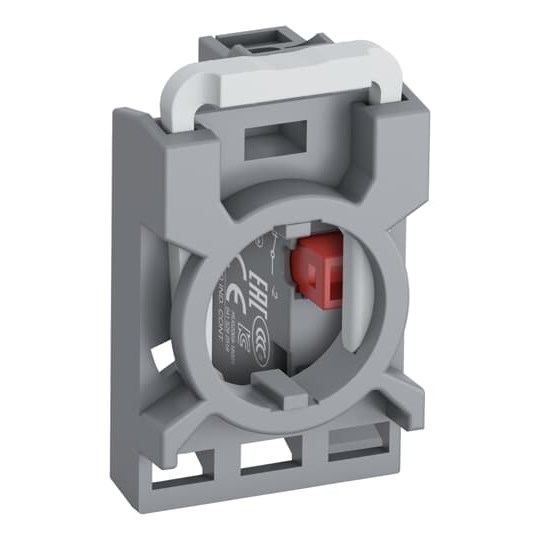

ABB MCBH-01 Contact Block 1NC 690VAC/DC Front Mount Non-Illuminated IP20 For Pilot Devices

Product Code: MCBH-01

  • Suitable for pilot devices
  • Rated voltage of 690 VAC/VDC
  • Operating temp: -25 to 70°C
  • IP20 protection rating
  • Screw terminal connection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Power Loss (W) 2.5
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 690
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Voltage AC/DC (V) 690
Tightening Torque (Nm) 0.9
Suitable For Pilot Devices
Ambient Temperature Range (°C) -25 to 70
Dimensions (mm) 30W x 48H x 36D
Weight (kg) 0.021
Rated Operational Current AC-15 230V (A) 6
Rated Operational Current DC-13 24V (A) 5
Storage Temperature Range (°C) -40 to 85
No. of Normally-closed Contacts 1
Wire Stripping Length (mm) 8
Accessory Type Contact Block with Holder
Rated Operational Current DC-13 125V (A) 0.55
Product Type Contact Block
Brand ABB
Ambient Temperature -25 to 70 deg C
Connecting Capacity Flexible with Ferrule 1/2 x 0.75 - 2.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.75 - 2.5 sq-mm, Flexible 1/2 x 0.75 - 2.5 sq-mm, Solid 1/2 x 0.75 - 2.5 sq-mm
Connection Type Screw
Contact Configuration 1NC
Degree of Protection IP20
Depth 36 mm
Height 48 mm
Illumination Non-Illuminated
Mounting Type Front
Power Loss 2.5 W
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Operational Current 0.55 A, 5 A, 6 A
Rated Voltage 690 VAC/VDC
Storage Temperature -40 to 85 deg C
Suitable For Use With Pilot Devices
Terminal Type Screw
Tightening Torque 1 N-m
Weight 0.021 kg
Width 30 mm
Wire Stripping Length 8 mm

Description

The MCBH-01 Contact Block is: Maintained - Non-illuminated - Single contact block - Front mounting - silver (Ag) - 1NC - 690V. This Contact Block is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.
