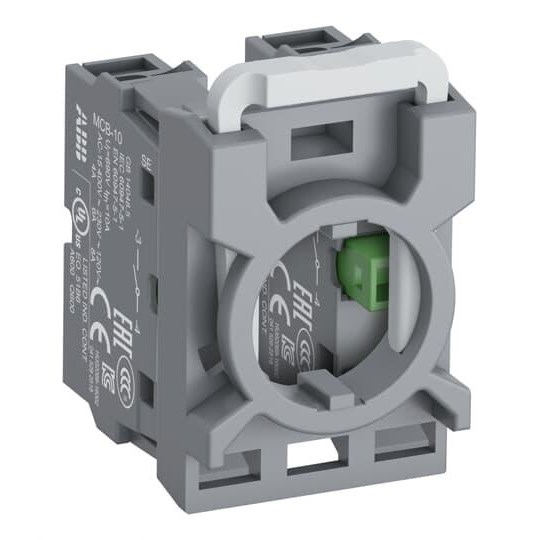

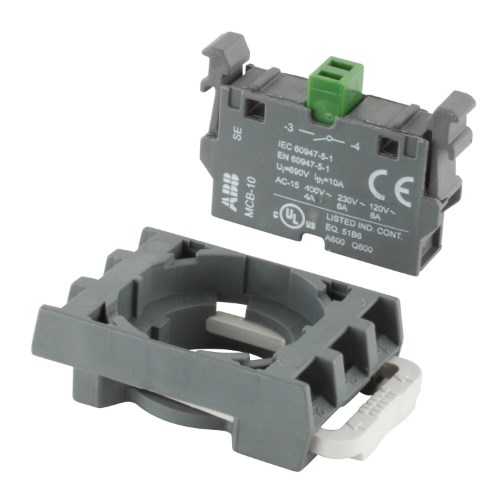

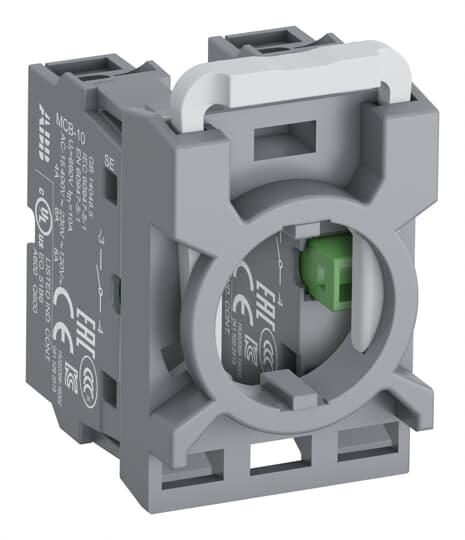

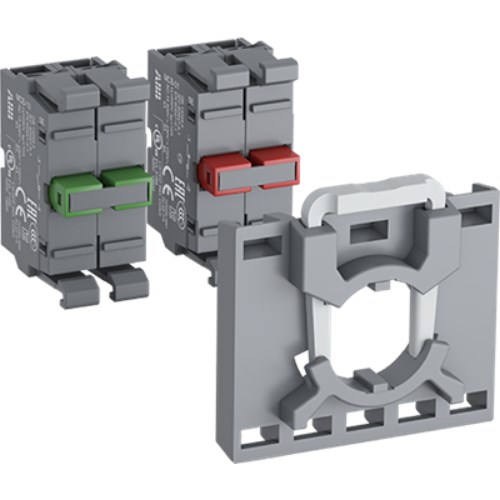

ABB MCBH-20 Contact Block 2NO Front Mount Non-Illuminated IP20 For Modular Plastic Contactors

Product Code: MCBH-20

  • Fits modular plastic contactors
  • Front mounting for easy installation
  • Non-illuminated design
  • IP20 protection rating
  • Dual 2NO contact configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
Dimensions (mm) 30W X 48H X 36D
No. of Positions 3
Rated Frequency (Hz) 50/60
Suitable For Modular Plastic
Rated Operational Current 240V AC (A) 6
Rated Operational Current 125V DC (A) 1.1
Rated Operational Current 24V DC (A) 5
Product Type Contact Block
Brand ABB
Contact Configuration 2NO
Degree of Protection IP20
Depth 36 mm
Height 48 mm
Illumination Non-Illuminated
Mounting Type Front
Number of Positions 3
Rated Frequency 50/60 Hz
Rated Operational Current 1.1 A, 5 A, 6 A
Suitable For Use With Modular Plastic Contactors
Width 30 mm

Description

The Contact block 2NC with holder is a front mount option designed for non-illuminated operation in modular plastic systems.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
