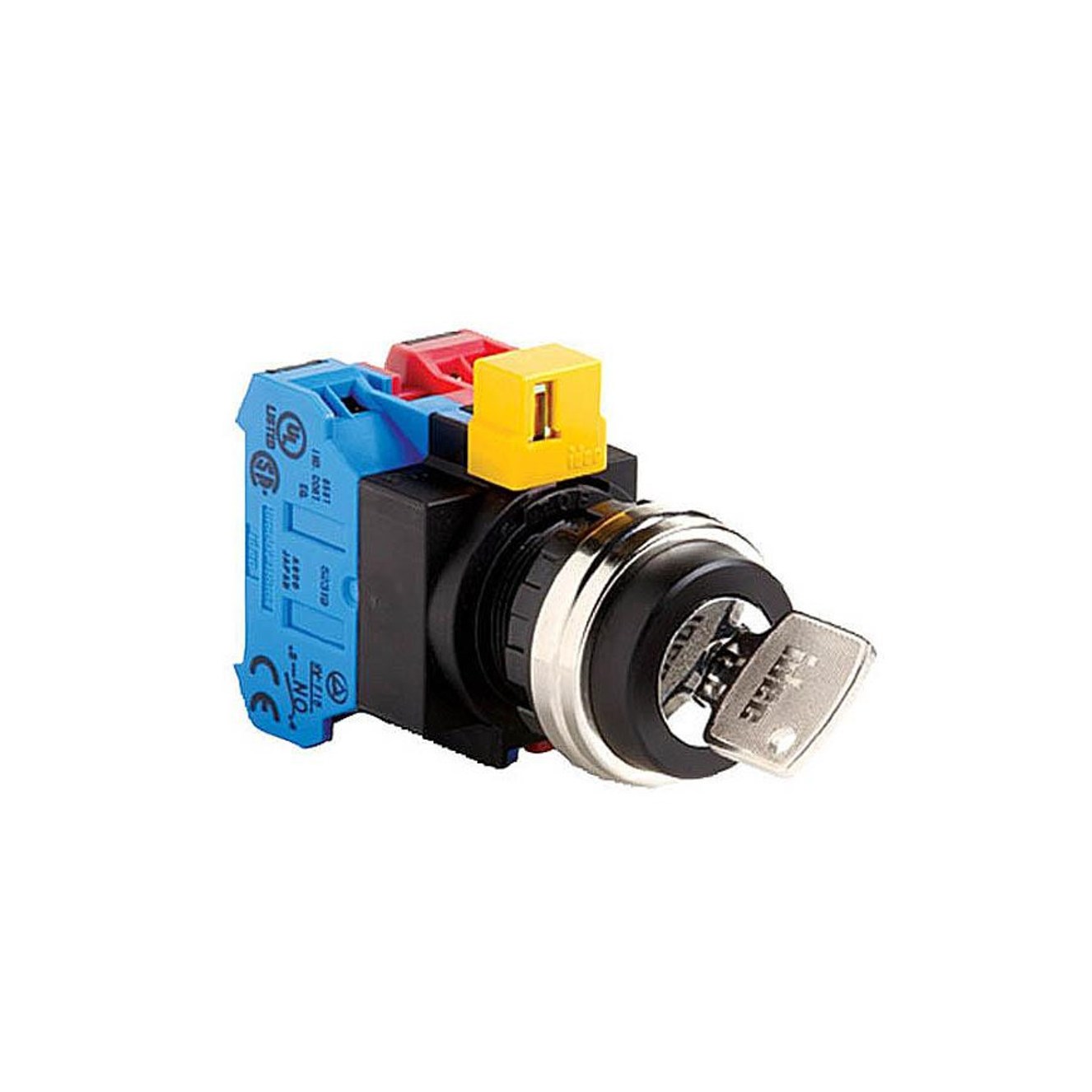

IDEC HW4K-2BF20 Selector Switch 2Position 2NO Right Maintained Knob Key Metal Screw Terminal

Product Code: HW4K-2BF20

  • Key selector switch with 2NO contact config
  • Rated current of 10 A, suitable for various uses
  • IP20/IP65 protection ensures durability
  • Operates in -25 to 60°C temp range
  • CE, CSA, UL approved for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 2
Terminal Shape Screw Terminal
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Key
Bezel Material Metal
Contact Configuration 2NO
Degree of Protection IP20, IP65
Function Maintained
Insulation Resistance 50 MOhm
Mode of Operation Spring Return
Mounting Hole Diameter 22 mm
Number of Positions 2
Operation Position Right
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW4K-2BF20 is a robust 2-way key switch designed for secure operations. It features a maintained contact mechanism with 2 normally open (NO) contacts and allows for key removal in the left position. The metal bezel ensures durability, while the 22mm size facilitates easy mounting. This switch is ideal for applications requiring controlled access with its key retention in the right position and straightforward two-position functionality.
