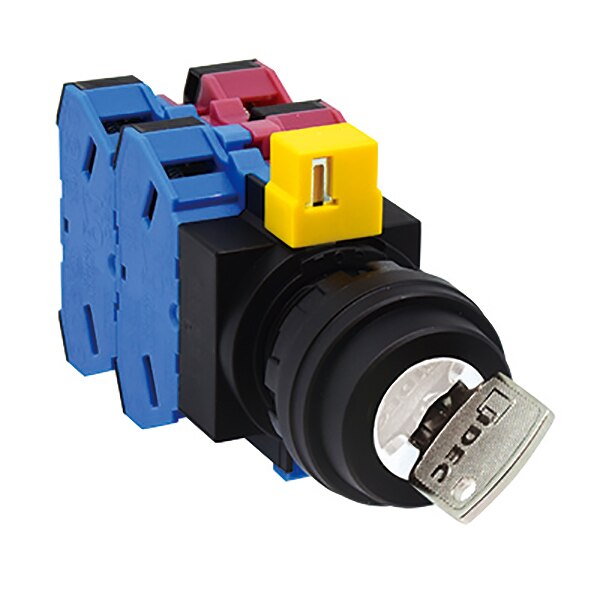

IDEC HW1K-33D22N1 Selector Switch 3Position 2NO+2NC Knob Key Plastic Screw Terminal

Product Code: HW1K-33D22N1

  • Selector switch with 10 A rated current
  • Operates at 50/60 Hz frequency
  • Spring return operation with key actuator
  • IP20/IP65 protection for durability
  • CE, CSA, UL approved for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Terminal Shape Screw terminal
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Key
Bezel Material Plastic
Contact Configuration 2NO+2NC
Degree of Protection IP20, IP65
Insulation Resistance 50 MOhm
Mode of Operation Spring Return
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW1K-33D22N1 is a robust 3-position spring key switch designed for secure and versatile operation. It features finger-safe (IP20) screw terminals that accommodate ring, fork, ferrule terminals, and bare wires. This switch ensures safety with all E-Stops meeting EN418 standards for IEC compliant positive action. It is recognized for its quality with UL listing, CSA certification, TUV approval, and CE marking. Additionally, it offers super bright LED illumination for clear visibility.
