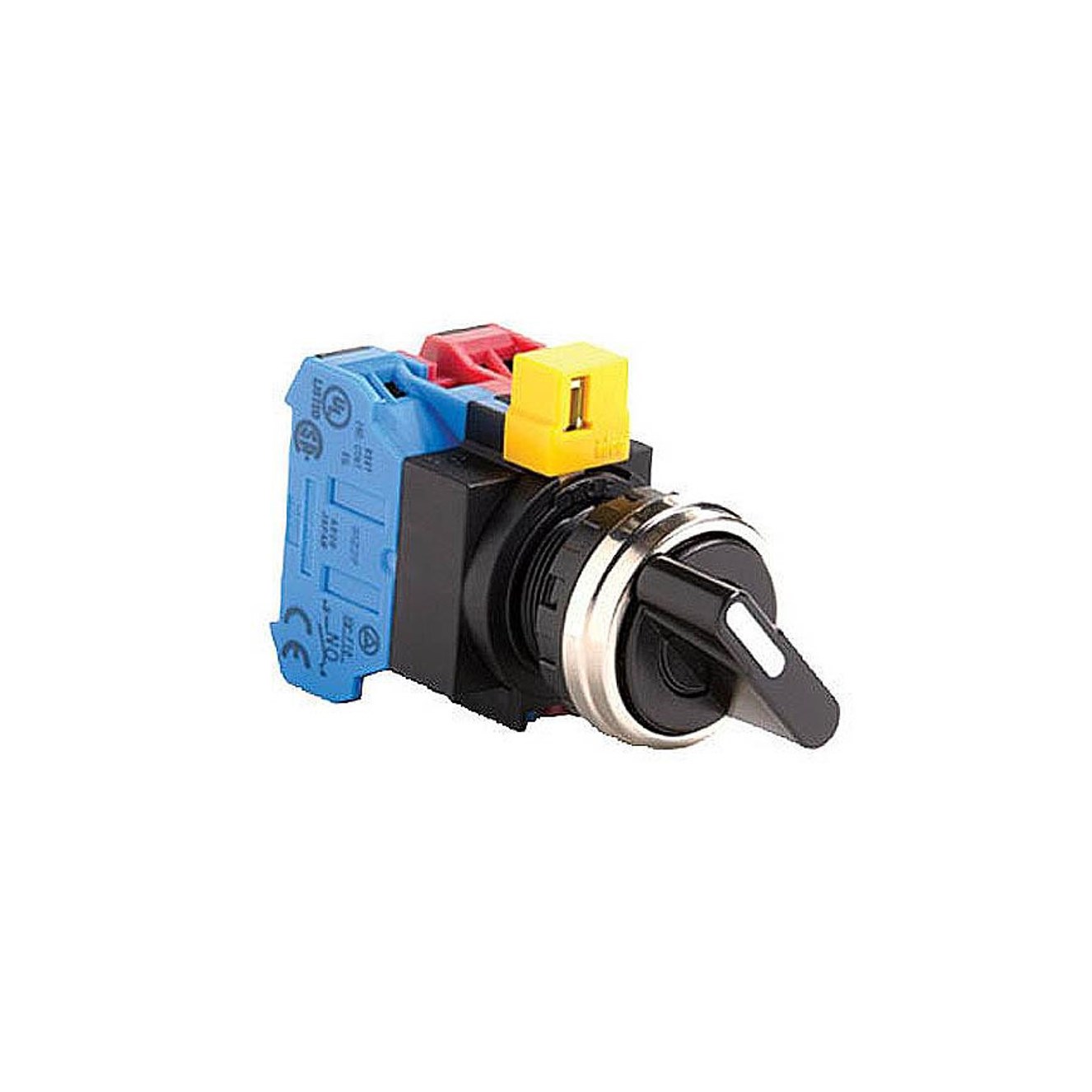

IDEC HW4S-33TF11 Selector Switch 3Position 1NO+1NC Non-Illuminated Knob Metal Screw Terminal

Product Code: HW4S-33TF11

  • 10A selector switch with spring return
  • Non-illuminated knob operation
  • IP20/IP65 protection for durability
  • CE, CSA, UL certified for safety
  • Fits 22mm mounting holes
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Product Type Selector Switch
Brand IDEC
Series HW
Bezel Material Metal
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Illumination Non-Illuminated
Insulation Resistance 50 MOhm
Mode of Operation Spring Return
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW4S-33TF11 is a robust metal bezel selector switch designed for industrial applications. It features a lever handle with three selectable positions and a spring-return mechanism from both directions for quick operation. Engineered for 22mm panel cutouts, this switch ensures durability and reliable performance in demanding settings.
