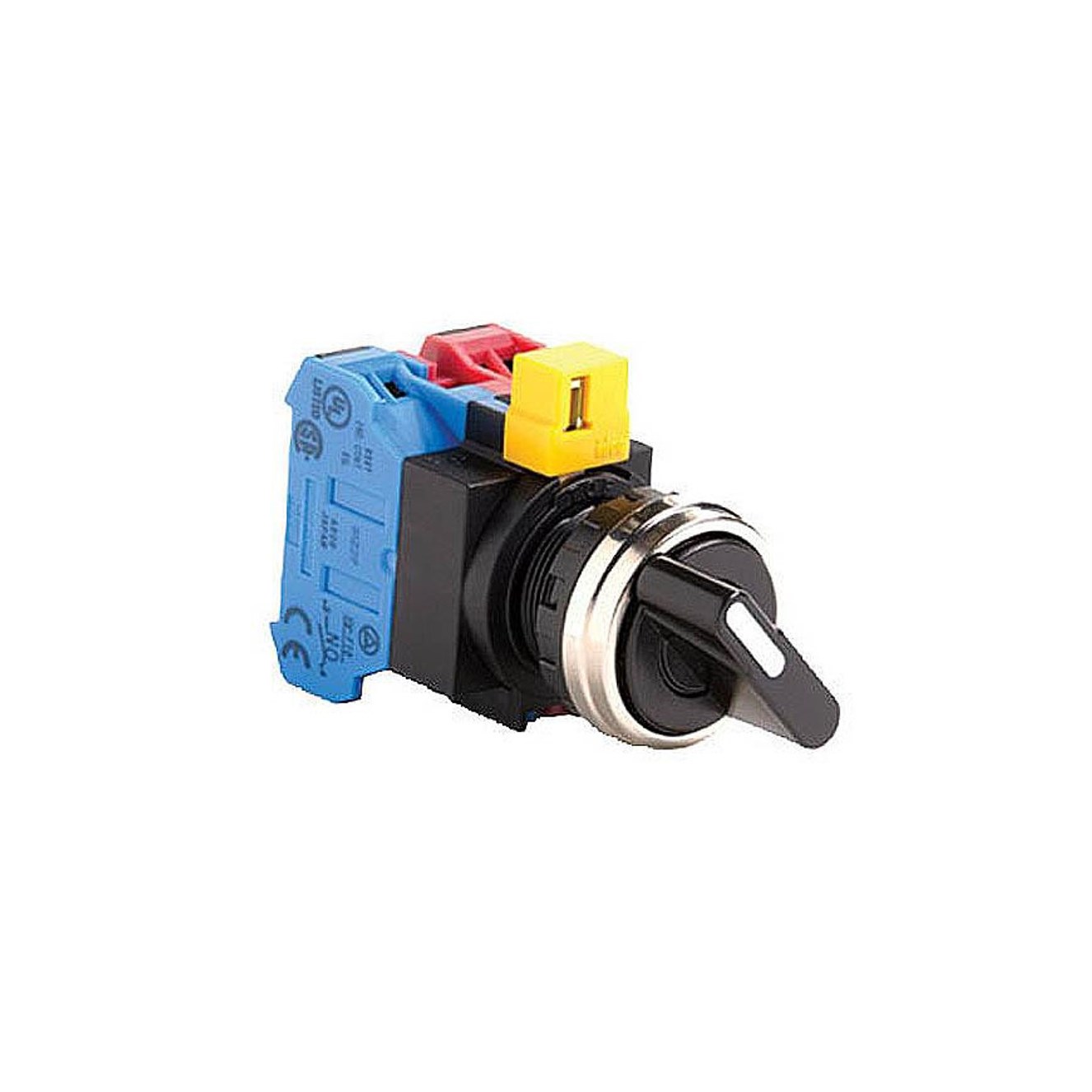

IDEC HW4S-3TF22 Selector Switch 3Position 2NO+2NC Non-Illuminated Maintained Knob Metal Screw Terminal

Product Code: HW4S-3TF22

  • Maintained function with knob operation
  • 2NO+2NC contact configuration
  • IP20/IP65 protection for durability
  • Fits standard 22 mm mounting hole
  • CE, CSA, UL approved for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 2
No. of Normally-closed Contacts 2
Product Type Selector Switch
Brand IDEC
Series HW
Bezel Material Metal
Contact Configuration 2NO+2NC
Degree of Protection IP20, IP65
Function Maintained
Illumination Non-Illuminated
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW4S-3TF22 is a robust 22mm selector switch from the HW series, featuring a metal bezel for enhanced durability. It offers three selectable positions with a maintained operation, ensuring stable and consistent performance. The switch includes 2 Normally Open (NO) and 2 Normally Closed (NC) contact configurations, providing flexible control options for various industrial applications. Its knob handle design allows for easy operation, making it a reliable choice for system controls.
