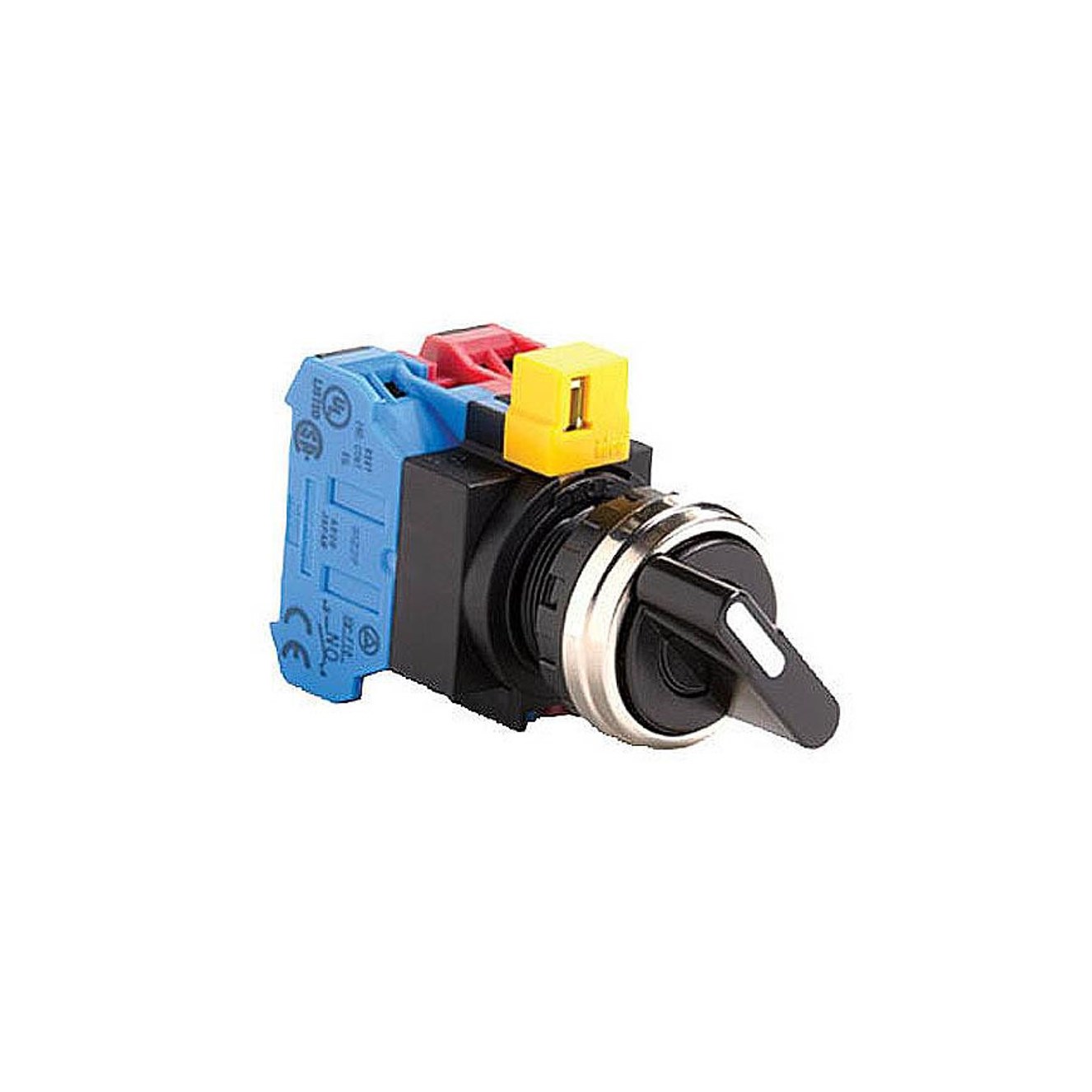

When selecting a reliable and robust selector switch for industrial or commercial applications, the HW Series Selector Switch stands out as a dependable choice. Designed to deliver consistent performance, this switch is well-suited for environments where precision and durability are paramount.
The selector switch operates with a rated current of 10 A, making it suitable for various electrical systems. It supports both 50 Hz and 60 Hz frequencies, offering flexibility in diverse operational settings. Its non-illuminated design ensures focus remains on functionality without unnecessary distractions.
Engineered to withstand challenging conditions, this selector switch functions efficiently within an operational temperature range of -25 to 60 degrees Celsius. This adaptability makes it ideal for use in both cold storage facilities and high-temperature industrial environments.
The HW Series Selector Switch features screw-type terminals which facilitate secure connections during installation. With a degree of protection rated at IP20 and IP65, it offers excellent resistance against dust ingress and water jets from any direction—providing peace of mind in demanding settings.
Compliance with CE, CSA, and UL standards underscores the product's adherence to international safety regulations, ensuring that users can trust its quality and reliability.
Designed with a mounting hole diameter of 22 mm, this selector switch fits seamlessly into standard panels or control boards. Its two-way spring return mode of operation means that the knob returns automatically to its default position after being turned—ideal for applications requiring quick reset or momentary activation.
The contact configuration includes two normally open (2NO) and two normally closed (2NC) contacts, offering versatile switching options suited for complex control circuits. Rated insulation voltage stands at an impressive 600 V while the rated impulse withstand voltage reaches up to 4 kV—both indicators of robust electrical resilience.
Constructed with a metal bezel material, this switch combines strength with aesthetic appeal while maintaining high insulation resistance at 50 MOhm to prevent leakage currents effectively.
In summary, the HW Series Selector Switch is engineered for those seeking reliability combined with technical excellence in their electrical components. Whether deployed in manufacturing plants or commercial installations requiring precise control mechanisms—the HW Series delivers assured performance every time.
