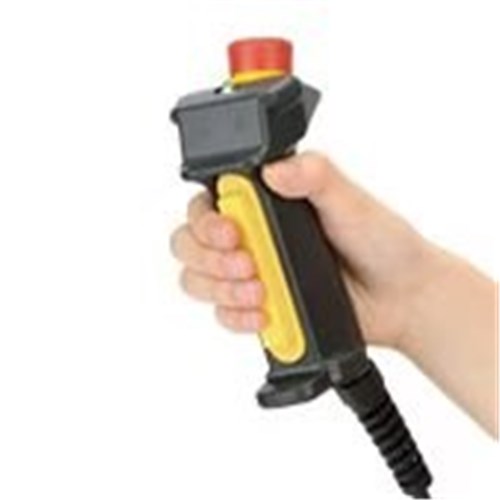

IDEC HE2G-21SHE-P-0 Grip Emergency Stop Pilot Light Enabling Switch

Product Code: HE2G-21SHE-P-0

  • Operates in -25 to 60°C environments
  • IP3 protection rating
  • Complies with multiple global standards
  • Withstands vibration 5-50 Hz
  • Durable, 1 million operations lifespan
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Grip Emergency Stop Pilot Light Enabling Switch
Brand IDEC
Bezel Colour Yellow
Colour Yellow
Degree of Protection IP3
Humidity 45-85%
Insulation Resistance 50 MOhm
Mechanical Life 1 million Operations
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 250 V
Rated Thermal Current 3 A
Shock Resistance 150 g/ms
Standards and Approvals CSA C22.2 #14, EN60947-5-1, EN60947-5-8, GB14048.5, GS-ET-22, IEC60847-5-8, IEC60947-5-1, JIS C8201-5-1, KS C IEC60947-5-1/S1-G-1, UL508
Storage Temperature -40 to 80 deg C
Vibration Resistance 5-50 Hz
Weight 150 g

Description

<p>When selecting a safety switch for industrial or commercial applications, it&amp;#39;s crucial to focus on its technical specifications and compliance with industry standards. This particular safety switch offers a blend of robust performance and reliability, making it suitable for various demanding environments.</p><p>Designed to operate efficiently within a temperature range of -25 to 60 degrees Celsius, this safety switch is well-suited for diverse Australian climates. Its IP3 degree of protection ensures that it can handle exposure to dust and water splashes commonly encountered in industrial settings.</p><p>Compliance with multiple international standards such as CSA C22.2 #14, EN60947-5-1, EN60947-5-8, GB14048.5, GS-ET-22, IEC60847-5-8, IEC60947-5-1, JIS C8201-5-1, KS C IEC60947-5-1/S1-G-1, and UL508 underscores its versatility and adherence to rigorous safety protocols. These certifications make it an ideal choice for businesses looking to meet global operational requirements.</p><p>Weighing just 150 grams, the switch is lightweight yet durable enough to withstand vibration frequencies ranging from 5 to 50 Hz. It also boasts impressive shock resistance rated at 150 g/ms—a testament to its resilience under challenging conditions.</p><p>The rated insulation voltage stands at 250 V while offering an insulation resistance of 50 MOhm. This ensures safe operation across various electrical systems without compromising on performance or safety. Additionally, the mechanical life extends up to one million operations—highlighting its long-term dependability in continuous use scenarios.</p><p>Its rated thermal current capacity is marked at 3 A which makes it compatible with several low-power applications without risk of overheating or failure due to excessive current loads.</p><p>Storage considerations are equally important; therefore this product maintains integrity across temperatures ranging from -40 up through +80 degrees Celsius ensuring longevity even when not actively deployed in service environments over extended periods if necessary</p><p>Humidity tolerance between levels varying between ranges such as those experienced locally here (45%-85%) further enhances adaptability amidst fluctuating atmospheric conditions often faced regionally</p><p>Aesthetically speaking too—the bezel comes finished off neatly using yellow coloring providing clear visibility &amp;amp; easy identification among other devices installed nearby</p><p>In conclusion: whether you’re seeking something reliable enough handle everyday tasks seamlessly yet still meets stringent regulatory demands internationally look no further than our high-quality solution offered today!</p>
