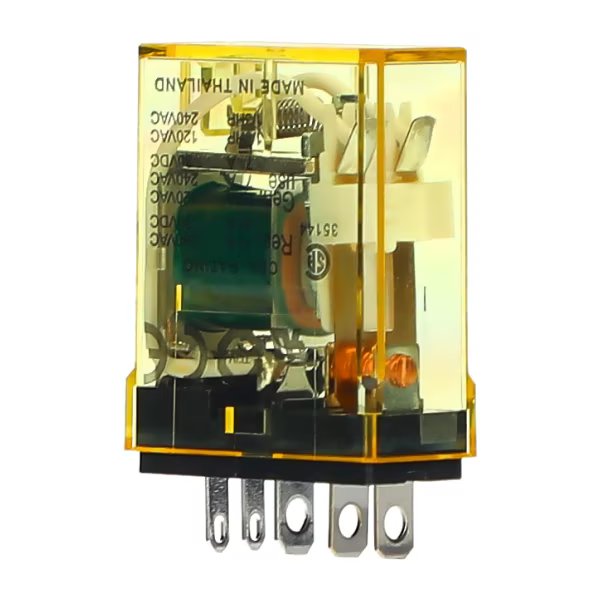

IDEC RH1B-UD-DC48V Power Relay SPDT 48VDC Coil 10A Blade Terminal

Product Code: RH1B-UD-DC48V

1

Specifications

Product Type	Power Relay
Brand	IDEC
Contact Configuration	SPDT
Contact Material	Silver Cadmium Oxide
Contact Resistance	50 MOhm
Electrical Life	200000 Operations
Humidity	45-85%
Insulation Resistance	100 MOhm
Mechanical Life	50000000 Operations
Number of Poles	1
Operating Time	20 ms
Rated Current	10 A
Rated Power	0.8 W
Rated Voltage	48 VDC
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA, EN, Lloyd Register, UL
Terminal Type	Blade
Vibration Resistance	10-55 Hz
Weight	24 g
