Product Code: XW1E-LV422Q4M-R

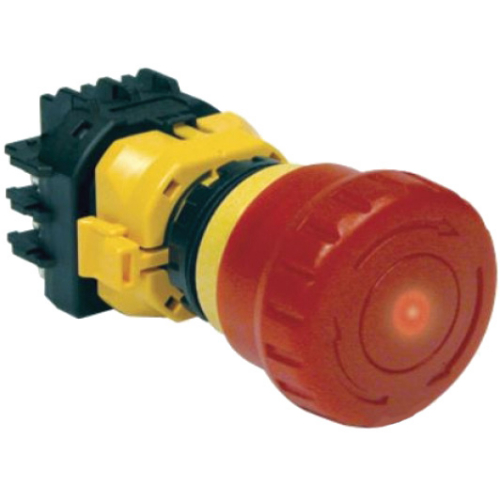

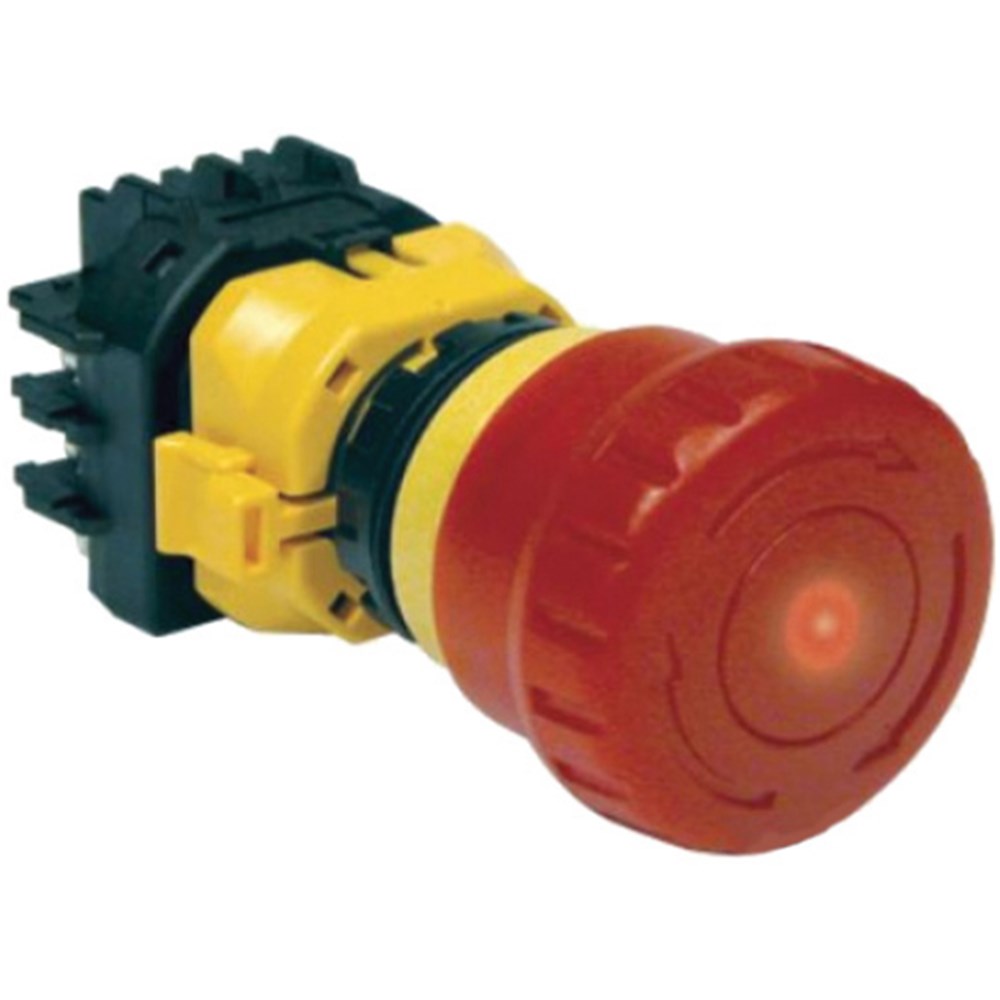

The IDEC XW1E-LV422Q4M-R is an illuminated E-Stop pushbutton featuring a 40mm red mushroom head. This emergency-stop button offers a 2NO/2NC safe break action type, ensuring reliable disconnection. It operates with a 24V AC/DC power supply and includes an LED indicator for clear visibility. Designed for robustness, it carries an IP65 rating, signifying its dust and water resistance. Suitable for various safety applications, this E-Stop pushbutton provides quick reset options through push, pull, or turn actions.

Brand	IDEC
Contact Material	Gold Plated Silver
Contacts	2NO+2NC
Conventional Free-Air Thermal Current - Ith (A)	Contact Rating - 10
Degree of Protection	IP65 (Front), IP20 (Terminals)
Illumination	Illuminated
Insulation Resistance (MO)	100
LED Colour	Red
Mode of Operation	Pushlock Turn/Reset
Mounting Hole Diameter (mm)	22
Mushroom Diameter (mm)	40
Operational Temperature Range (°C)	-25 to +55
Pollution Degree	3
Rated Current (mA)	15
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	2.5
Rated Insulation Voltage (V)	300
Rated Voltage AC/DC (V)	24
Series	XW
Terminal Type	Screw (M3.5)
Tightening Torque (Nm)	Locking Ring - 2.0 Terminal Screw 0.6 - 1.0

Pilot & Signalling Devices

IDEC ILLUMINATED E-STOP 40mm MUSHROOM 24V AC/DC LED, 2NC+2NO SAFE BREAK ACTION TYPE, XW SERIES XW1E-LV422Q4M-R
