IDEC ILLUMINATED E-STOP 40mm MUSHROOM 24V AC/DC LED, 3NC+1NO SAFE BREAK ACTION TYPE, XW SERIES XW1E-LV413Q4M-R

Product Code: XW1E-LV413Q4M-R

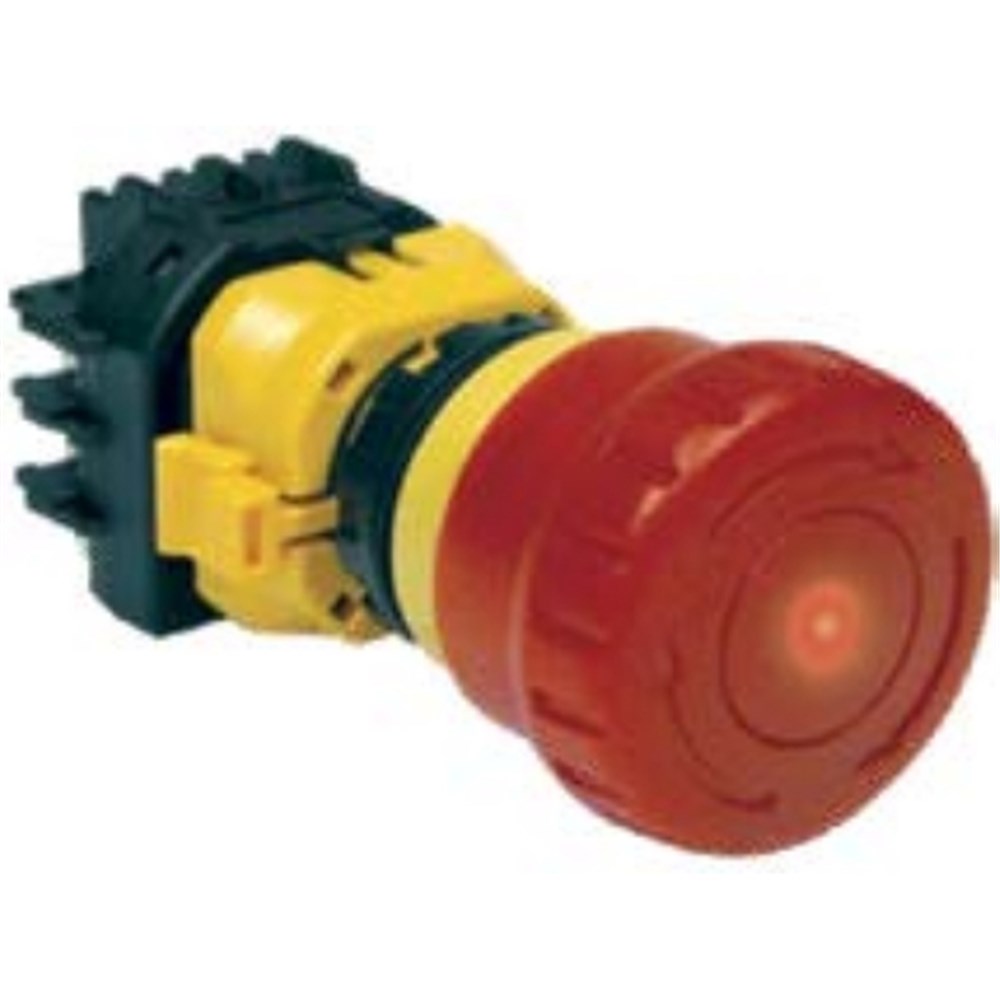

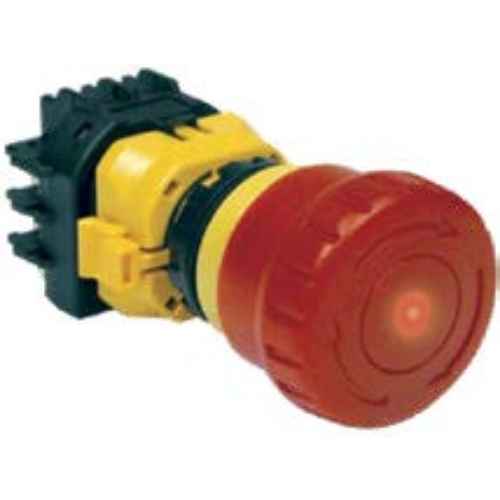

The IDEC XW1E-LV413Q4M-R is an illuminated emergency-stop pushbutton featuring a 40mm red mushroom cap. This E-Stop provides a 3NC+1NO contact configuration with safe break action for reliable shutdowns. It includes a pushlock mechanism for secure locking and can be reset by pulling or turning. Designed to operate on 24V AC/DC, the integrated LED indicator enhances visibility. The unit boasts an IP65 rating, ensuring protection against dust and water ingress.

Technical Specifications

Brand IDEC
Contact Material Gold Plated Silver
Contacts 1NO+3NC
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Degree of Protection IP65 (Front), IP20 (Terminals)
Illumination Illuminated
Insulation Resistance (MO) 100
LED Colour Red
Mode of Operation Pushlock Turn/Reset
Mounting Hole Diameter (mm) 22
Mushroom Diameter (mm) 40
Operational Temperature Range (°C) -25 to +55
Pollution Degree 3
Rated Current (mA) 15
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 2.5
Rated Insulation Voltage (V) 300
Rated Voltage AC/DC (V) 24
Series XW
Terminal Type Screw (M3.5)
Tightening Torque (Nm) Locking Ring - 2.0 Terminal Screw 0.6 - 1.0
