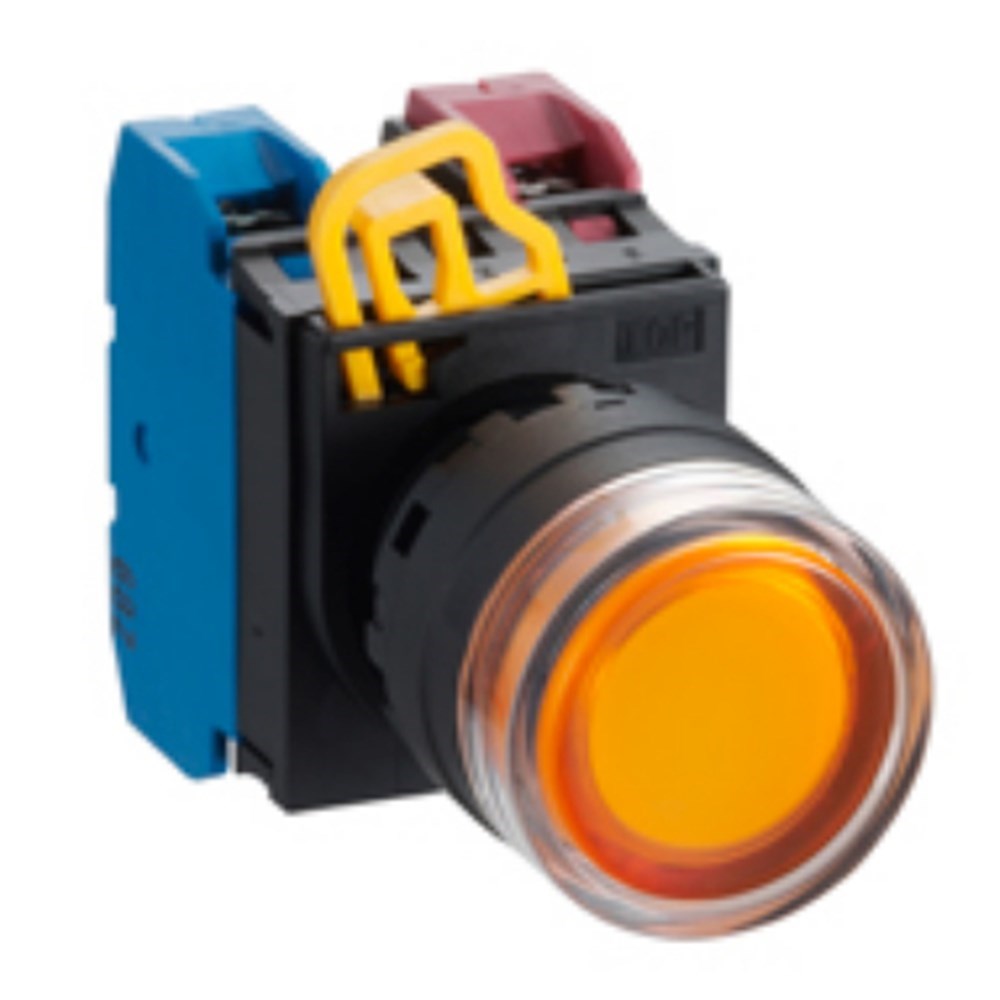

The YW Series Pushbutton is a robust and reliable component designed for industrial and commercial applications. With its illuminated amber LED, this pushbutton ensures clear visibility in various lighting conditions, enhancing operational efficiency. Measuring 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, it fits seamlessly into standard panels or control systems.
This pushbutton operates efficiently at a rated voltage of 230/240 VAC/DC and can withstand an operational temperature range from -20 to 55 degrees Celsius, making it suitable for diverse environments. Its storage temperature capacity ranges from -40 to 85 degrees Celsius, ensuring durability even when not in use.
The pushbutton features an extended actuator with a full shroud for easy activation while maintaining safety standards. The contact configuration includes one normally open (1NO) and one normally closed (1NC) contact block made of silver material, known for excellent conductivity and longevity.
Designed with user safety in mind, the product boasts a degree of protection rated at IP65 on the front side against dust and low-pressure water jets from any direction. Meanwhile, the terminal section carries an IP20 rating for basic protection against solid objects larger than 12mm but should be handled with care during installation or maintenance.
Rated insulation voltage stands at 600 V while supporting a continuous current of up to 10 A. The mechanical life is impressive with up to five million operations for single contact blocks and one million operations for double contact blocks—ensuring long-term reliability.
Standards compliance is assured as this pushbutton meets cULus listing requirements along with CE Marking, UKCA Certification, and CCC Certification—demonstrating adherence to international safety standards.
The device's screw terminals facilitate secure connections during installation while its vibration resistance between frequencies of 5-55 Hz coupled with shock resistance up to 10 g/ms ensures stability under dynamic conditions.
With humidity tolerance ranging from 45% to 85%, this pushbutton remains functional across varied atmospheric conditions without compromising performance integrity over time.
Its bezel crafted from durable plastic complements its overall design aesthetics without sacrificing strength—a practical choice given frequent handling scenarios typical within industry settings where such components find application daily basis across sectors globally today!
