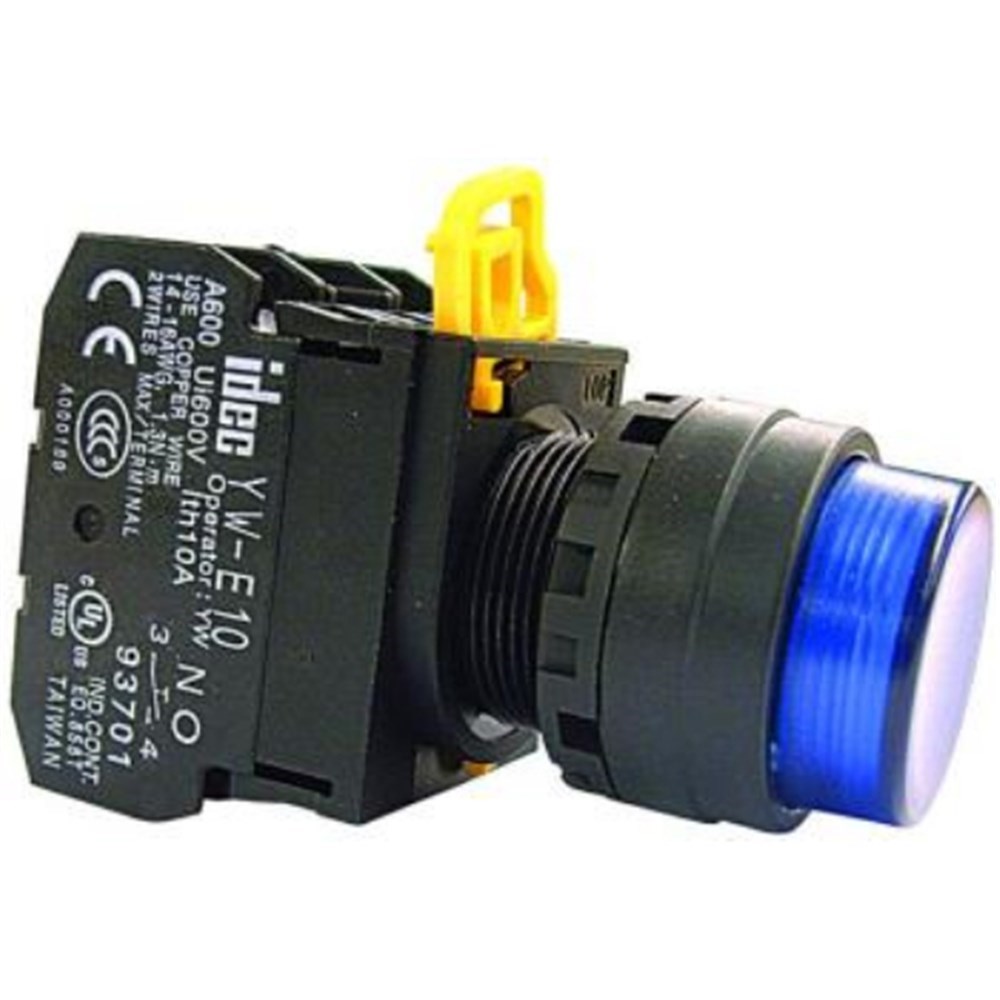

The YW series pushbutton is a robust and reliable choice for industrial and commercial applications, offering a blend of durability and functionality. Designed to operate at a rated voltage of 230/240 VAC/DC, this illuminated pushbutton ensures visibility with its built-in blue LED lamp, making it suitable for environments where clarity is crucial.
With dimensions of 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, the pushbutton offers a compact yet effective design that fits seamlessly into control panels or machinery interfaces. The actuator type is extended, providing ease of use while maintaining operational integrity.
Engineered to withstand challenging conditions, the pushbutton operates efficiently within a temperature range from -20 to 55 degrees Celsius and can be stored between -40 to 85 degrees Celsius without compromising performance. Its IP65 front protection guards against dust and water ingress, whereas the IP20 rating on terminals ensures basic protection during installation.
This device complies with multiple international standards including cULus listing, CE marking, UKCA certification, and CCC certification—highlighting its global applicability and adherence to safety norms.
The mechanical life expectancy stands out with an impressive 5 million operations for single contact blocks and 1 million operations for double contact blocks. This longevity is complemented by its shock resistance up to 10 g/ms and vibration resistance from 5-55 Hz—ensuring reliability even in high-stress environments.
Featuring a momentary function with a contact configuration of one normally open (1NO) plus one normally closed (1NC), the pushbutton caters effectively to various control requirements. Silver contacts provide excellent conductivity while maintaining durability over time.
For installation convenience, the cutout size aligns at 22 mm diameter which matches industry standards facilitating easy integration into existing setups. The screw terminal type further simplifies wiring processes while ensuring secure connections capable of handling rated continuous currents up to 10 A.
Humidity resilience between 45-85% allows this component to perform effectively across different climates without degradation in insulation resistance which stands robustly at over 100 MOhm.
Crafted with plastic bezel material that balances strength with lightweight properties—the YW series pushbutton delivers both functional excellence and economic value for professionals seeking dependable solutions tailored towards precise technical requirements in their projects or installations.
