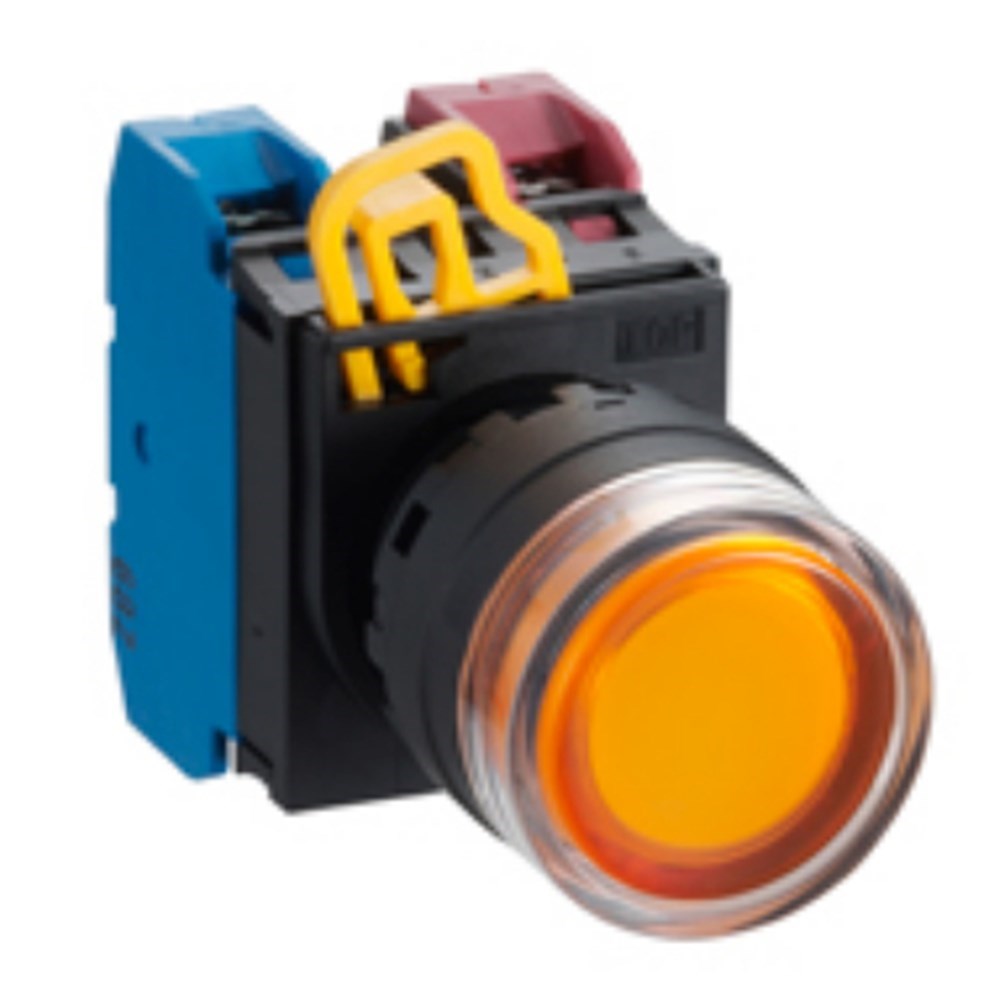

The YW Series pushbutton is designed for industrial and commercial applications, offering reliability and robustness in demanding environments. This pushbutton operates at a rated voltage of 24 VAC/DC, ensuring compatibility with various electrical systems. Its illuminated design enhances visibility, making it suitable for environments where clarity is crucial.
Measuring 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, this compact device fits seamlessly into standard setups without occupying excessive space. The actuator type features an extended design with a full shroud for added protection against accidental activation.
Engineered to withstand harsh conditions, the pushbutton operates efficiently within temperatures ranging from -20 to 55 degrees Celsius and can be stored between -40 to 85 degrees Celsius. It meets rigorous standards such as cULus listing, CE marking, UKCA certification, and CCC certification—ensuring compliance with international safety regulations.
The device boasts an IP65 degree of protection on the front side against dust and water ingress while maintaining IP20 protection at the terminal level. This makes it ideal for use in both indoor and outdoor settings where exposure to elements is a consideration.
Featuring a screw terminal type connection for secure wiring installation, this pushbutton supports ease of maintenance and replacement when necessary. The contact configuration includes one normally open (1NO) and one normally closed (1NC) contact made from silver material—providing excellent conductivity and durability over time.
With its built-in green LED lamp for illumination purposes, operators can quickly identify status changes or activations even under low-light conditions. The momentary function ensures that the button returns to its original position after being pressed—a vital feature for many control applications requiring temporary engagement only.
The mechanical life expectancy reaches up to five million operations on single contact blocks or one million operations on double contact blocks—demonstrating long-term reliability suitable for high-frequency usage scenarios.
This model adheres to vibration resistance standards between 5-55 Hz along with shock resistance capabilities rated at 10 g/ms which further solidifies its robustness amidst challenging operational environments often encountered within industrial settings today.
Its bezel material is crafted from durable plastic contributing not only towards longevity but also reducing overall weight facilitating easier handling during installation processes too! Additionally offering insulation resistance standing strong at around about some hundred mega-ohms alongside cutout size measuring precisely twenty-two millimeters diameter-wise; these dimensions allow seamless integration into existing panels thereby optimizing efficiency across board-level implementations alike!
For those needing dependable performance coupled alongside superior build quality look no further than incorporating our trusted series product line into your next project setup now!
