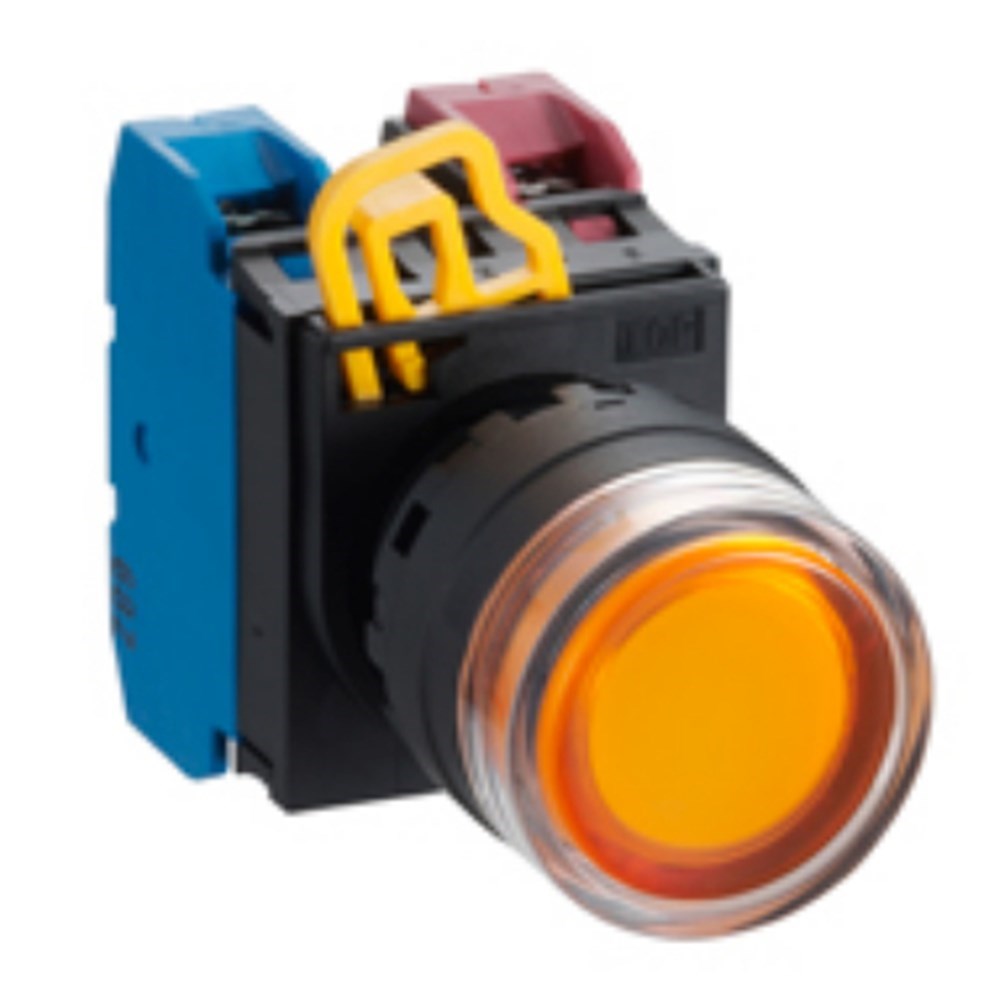

When it comes to selecting a reliable pushbutton for industrial and commercial applications, the YW Series Pushbutton offers a robust solution designed to meet rigorous standards. This pushbutton is tailored for those who need dependable performance under varying environmental conditions.
With a rated voltage of 24 VAC/DC, this illuminated pushbutton ensures visibility even in low-light environments thanks to its built-in red LED lamp. The dimensions are compact yet practical, measuring 30 mm in width, 41.4 mm in height, and extending to a depth of 64.8 mm. Its design incorporates an extended actuator with full shroud protection, crafted from durable plastic material.
The operational temperature range is impressive, spanning from -20°C to 55°C. This makes it suitable for diverse climates while maintaining functionality within storage temperatures ranging from -40°C to 85°C. The device supports humidity levels between 45% and 85%, ensuring resilience against moisture-related challenges.
Engineered with safety and durability in mind, the front boasts an IP65 degree of protection against dust and water ingress, while the terminals are protected up to IP20 standards. It adheres strictly to international standards being cULus listed, CE marked, UKCA certified, and CCC certified.
For ease of installation and maintenance, the pushbutton features screw-type terminals that simplify electrical connections without compromising on security or reliability. With a rated insulation voltage of 600 V and a continuous current rating of up to 10 A, it’s engineered for robust electrical performance.
The mechanical life expectancy stands out with an impressive five million operations for single contact blocks and one million operations for double contact blocks—an assurance of longevity even under frequent use scenarios.
The contact configuration includes one normally open (1NO) and one normally closed (1NC) setup using silver as the contact material—a choice that enhances conductivity while minimizing wear over time.
In terms of resistance capabilities, it withstands vibrations ranging from 5-55 Hz and can endure shocks up to 10 g/ms—ideal for environments where machinery may cause physical disturbances.
Installation is straightforward with a standard cutout size diameter of 22 mm which fits seamlessly into most control panels or operator interfaces without requiring extensive modifications.
Overall this YW Series Pushbutton combines practicality with high-performance specifications making it an excellent choice for professionals seeking reliability coupled with compliance across multiple regulatory frameworks.
