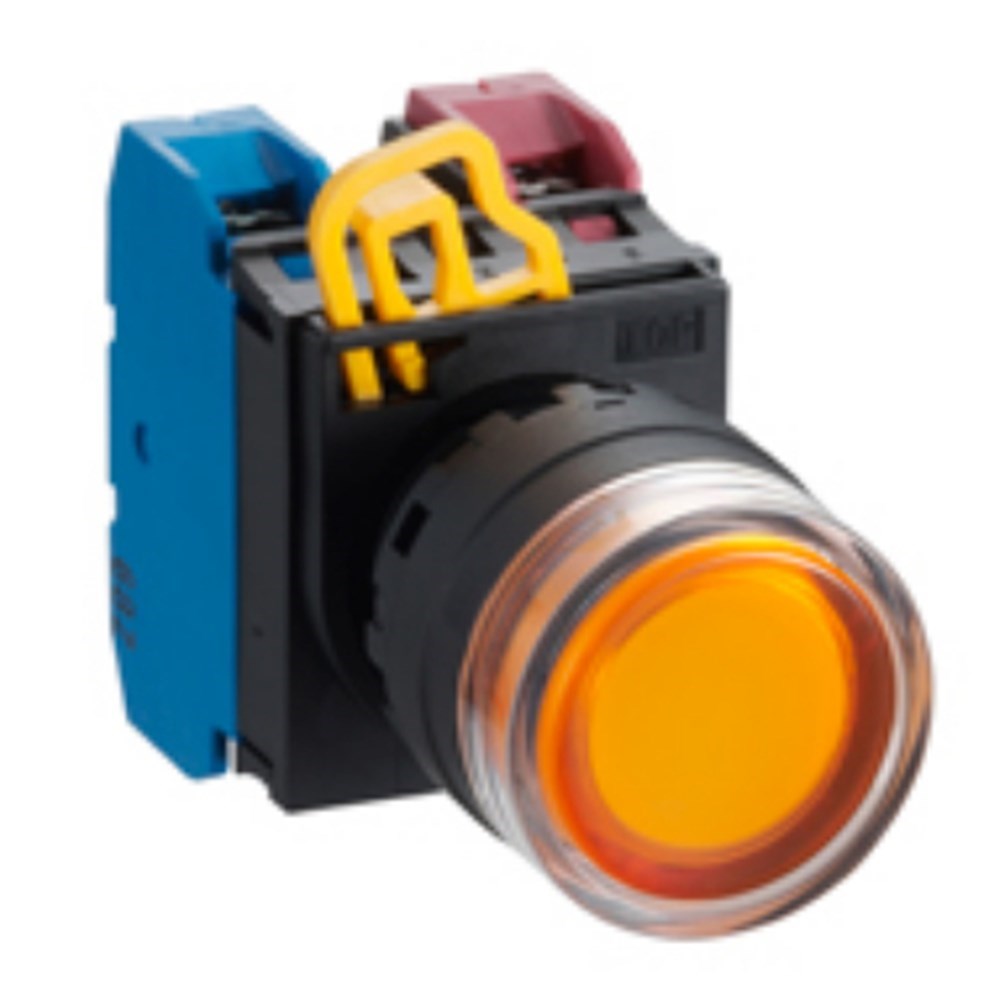

This pushbutton from the YW series is a reliable choice for industrial and commercial applications, offering a balance of robust construction and efficient functionality. Designed to operate at a rated voltage of 230/240 VAC/DC, this illuminated pushbutton ensures visibility with its built-in yellow LED lamp, making it suitable for environments where clear indication is essential.
Measuring 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, the compact design allows for easy integration into control panels without compromising on performance. The actuator type features an extended design with a full shroud, providing added protection and ease of use.
Engineered to withstand tough conditions, this pushbutton operates efficiently within temperatures ranging from -20 to 55 degrees Celsius and can be stored safely between -40 to 85 degrees Celsius. It supports humidity levels from 45-85%, ensuring durability in various environmental conditions.
The product's degree of protection includes IP65 rating at the front and IP20 at the terminal level, safeguarding against dust ingress and low-pressure water jets while maintaining user safety during installation or maintenance. The terminal type is screw-based, facilitating secure connections.
For those concerned about compliance and standards, rest assured that this pushbutton is cULus listed, CE marked, UKCA certified, and CCC certified—demonstrating adherence to international quality benchmarks.
With vibration resistance up to frequencies of 5-55 Hz and shock resistance rated at 10 g/ms, this device is built to endure dynamic mechanical stresses commonly encountered in industrial settings. Its mechanical life spans an impressive five million operations for single contact blocks or one million operations for double contact blocks.
The contact configuration comprises one normally open (1NO) and one normally closed (1NC) setup using silver contact material known for its excellent conductivity properties. This configuration provides versatility in circuit designs requiring momentary function operation.
Additional specifications include a diameter of 22 mm that matches standard cutout sizes for seamless installation across various equipment panels. Rated insulation voltage stands at 600 V with an insulation resistance exceeding 100 MOhm—offering reliable electrical isolation capabilities crucial for safe operation under load currents up to ten amperes continuously.
Overall this YW series pushbutton embodies practicality through thoughtful engineering designed specifically around user needs—a dependable component ready-made not just meeting but exceeding expectations across diverse technical landscapes.
