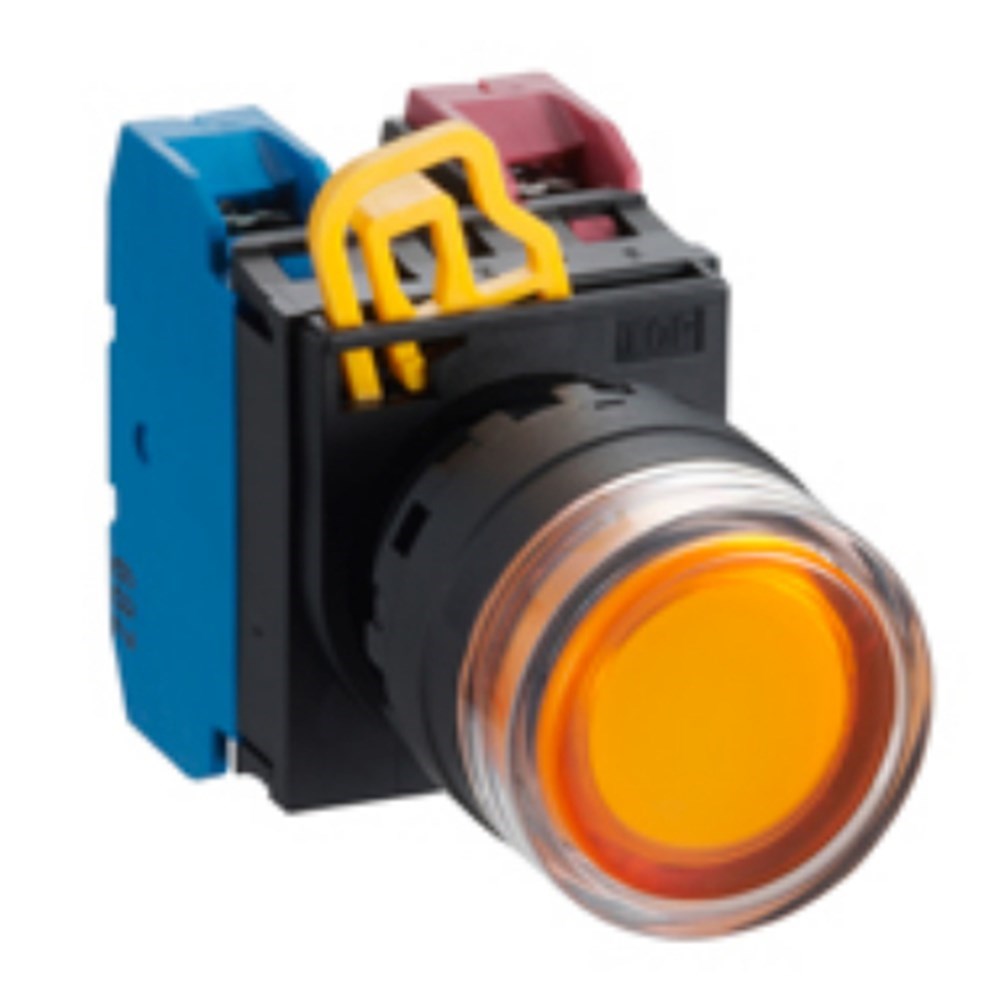

IDECYW1L-MF2E11Q4Y Illuminated Pushbutton 22mm Extended w/Full Shroud Momentary Yellow 24VAC/DC 1NO+1NC

Product Code: YW1L-MF2E11Q4Y

  • Illuminated pushbutton with yellow LED
  • IP65 front protection for harsh environments
  • Extended actuator with full shroud design
  • 1NO+1NC contact configuration
  • Mechanical life up to 5 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+1NC
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Insulation Resistance (MO) 100
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Rated Voltage AC/DC (V) 24
Mounting Hole Diameter (mm) 22
Lamp Included
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Extended with Full Shroud
Bezel Material Plastic
Bezel Type Plastic
Contact Configuration 1NO+1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 64.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Yellow
Lamp Type Built-in LED
LED Colour Yellow
Mechanical Life 5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Mode of Operation Momentary
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Rated Voltage 24 VAC/DC
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1L-MF2E11Q4Y is an illuminated pushbutton featuring a yellow LED with an extended shroud for prominent visibility. It operates on a momentary mechanism and includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact. Designed for a 22mm mounting size, this pushbutton ensures safety with finger-safe terminals and is suitable for use with a 24VAC/DC power supply. It carries an IP20 rating, signifying protection against solid objects.
