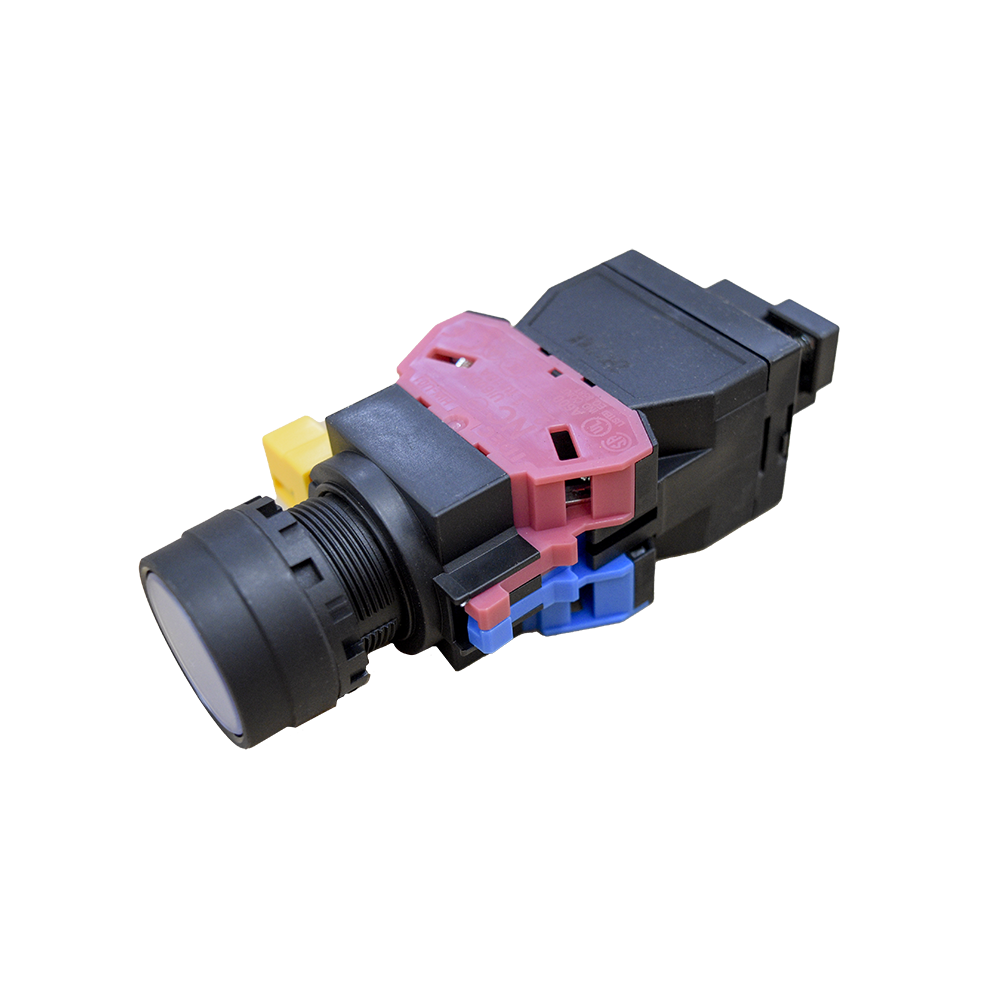

For those in the industrial and commercial sectors seeking a reliable pushbutton solution, this product from the HW series offers robust functionality coupled with essential safety features. Designed to meet demanding operational environments, it comes equipped with a range of technical specifications that ensure both performance and compliance.
This pushbutton operates at a rated voltage of 6 VAC/DC and is illuminated for easy identification under various lighting conditions. Its flush actuator type ensures seamless integration into panels while maintaining an aesthetic appeal. The button's contact configuration includes one normally open (1NO) and one normally closed (1NC) contact, utilizing silver as the contact material for enhanced conductivity and durability.
Built to withstand rigorous use, this pushbutton boasts a mechanical life of up to 5 million operations, making it a cost-effective choice for long-term applications. It can operate efficiently within temperatures ranging from -25 to 60 degrees Celsius, providing versatility across different environmental conditions.
The terminal type is screw-based, facilitating straightforward installation and secure connections. With an IP65 degree of protection on the front side, the device is safeguarded against dust ingress and low-pressure water jets from any direction—a critical feature for ensuring longevity in challenging settings. However, at the terminal level, it has an IP20 rating which should be considered during installation planning.
Safety standards are rigorously met with UL listing, CE marking, ULKA approval, and CSA certification—offering peace of mind regarding regulatory compliance. The rated insulation voltage stands at 600 V while maintaining an insulation resistance of 100 MOhm; these attributes contribute significantly to its safe operation under specified conditions.
The round bezel shape crafted from durable plastic is black in color complementing most panel designs while fitting snugly into a standard cutout size of 22 mm diameter. Notably absent is an integrated lamp; however, its design allows compatibility with various lamp types should illumination be required later on.
Whether you're upgrading existing systems or implementing new installations where reliability cannot be compromised—this pushbutton promises consistent performance backed by comprehensive approvals suitable for diverse applications across Australia’s industrial landscape.
