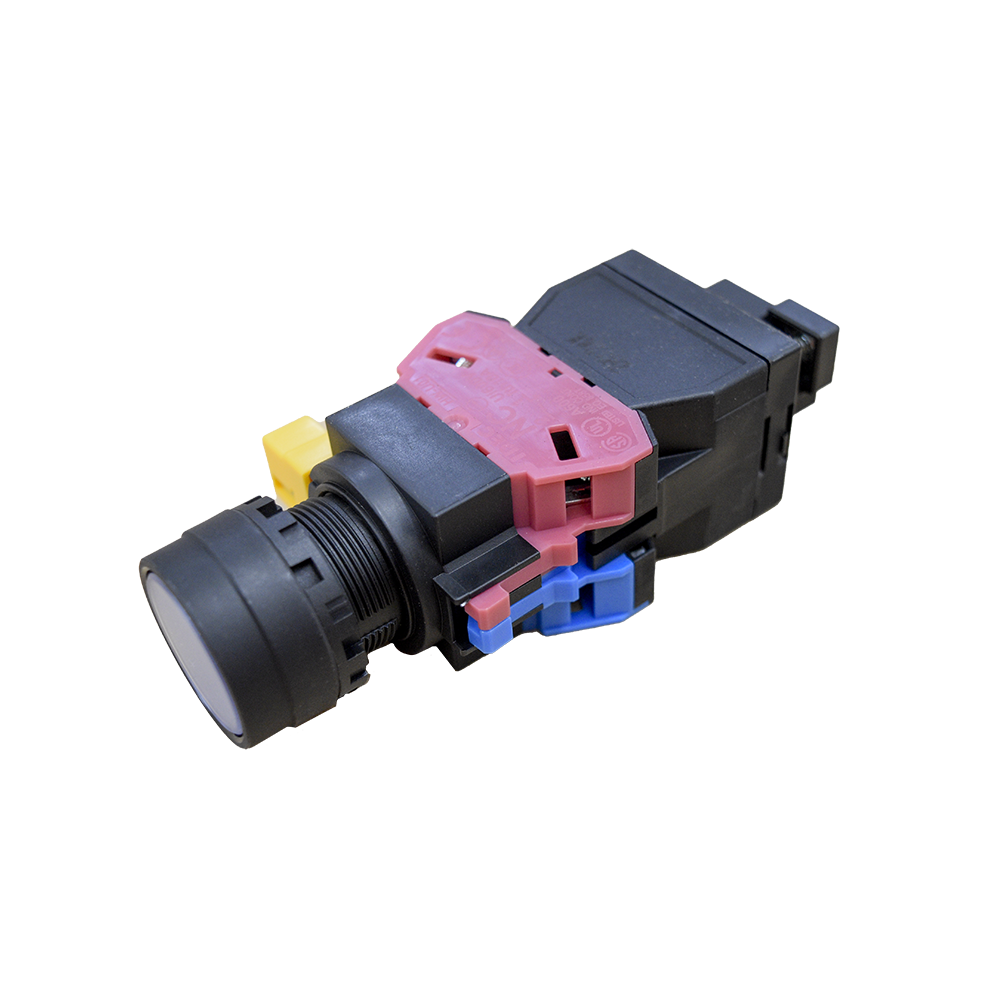

When selecting a pushbutton for industrial and commercial applications, it's essential to focus on technical specifications that ensure reliability and performance. The HW Series Pushbutton stands out with its robust features tailored to meet demanding operational environments.
This pushbutton operates at a rated voltage of 6 VAC/DC, making it suitable for low-power control circuits. It is illuminated, enhancing visibility in various settings, though it does not include a lamp by default. Designed to withstand harsh conditions, the unit operates efficiently within an impressive temperature range from -25°C to 60°C.
The pushbutton's terminal type is screw-based, ensuring secure connections during installation and maintenance. With an IP65 rating at the front and IP20 at the terminals, it offers excellent protection against dust ingress and water jets while maintaining safety during handling.
Compliance with multiple standards underscores its quality: UL listed, CE marked, ULKA approved, and CSA certified. These certifications affirm its adherence to international safety regulations—a critical aspect for engineers prioritizing compliance in their projects.
With a rated insulation voltage of 600 V and an insulation resistance of 100 MOhm, this pushbutton provides dependable electrical isolation. Its mechanical life extends up to 5 million operations—indicative of durability over extended use periods.
The contact configuration features both normally open (NO) and normally closed (NC) contacts made from silver material for superior conductivity. This dual-contact setup facilitates versatile circuit designs catering to different application needs.
A flush actuator type ensures minimal protrusion when mounted on panels or control boards—ideal for streamlined installations where space conservation is key. The round bezel shape crafted from plastic complements this design philosophy while offering resilience against impact.
Measuring 22 mm in diameter with a matching cutout size simplifies integration into standard panel layouts without requiring additional modifications. The green lamp color enhances visual indication aligned with common industry standards for signaling status or alerts.
Rated thermal current capacity sits at 10 A—sufficiently robust to handle typical loads encountered in control systems without overheating concerns. The black bezel color provides contrast against most mounting surfaces aiding quick identification amidst complex setups.
In summary this HW Series Pushbutton combines practicality with performance meeting stringent demands across varied industrial contexts ensuring you have reliable operation backed by significant approvals suited perfectly within your technical requirements.
