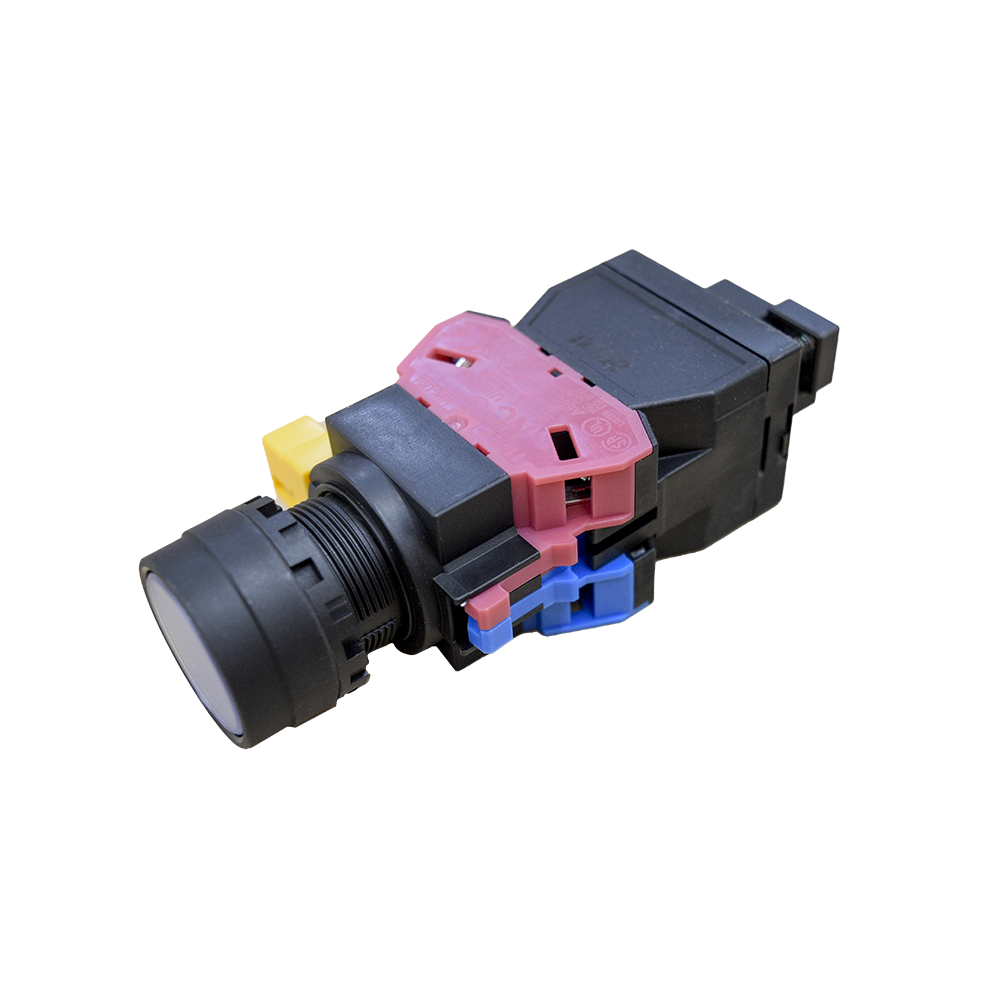

In the realm of industrial and commercial applications, selecting the right pushbutton is crucial for seamless operations. The HW Series Pushbutton stands out as a reliable choice, designed to meet rigorous standards while offering practical features suited for various environments.
This pushbutton operates at a rated voltage of 6 VAC/DC, making it suitable for low voltage applications. Its illuminated design enhances visibility in dimly lit settings, although it's worth noting that this model comes without a lamp included. With an operational temperature range from -25 to 60 degrees Celsius, it performs reliably across diverse climates.
The device ensures durability with its robust mechanical life of 5 million operations. It boasts a contact configuration of 1NO+1NC (one normally open and one normally closed), constructed from high-quality silver contact material. This enhances conductivity and longevity, ensuring consistent performance over time.
Safety and protection are paramount; hence, the pushbutton is equipped with an IP65 degree of protection on the front side to guard against dust and water ingress. However, note that the terminal offers IP20 protection level. The screw terminal type facilitates secure connections during installation.
Adhering to international standards and approvals such as UL listing, CE marking, ULKA approval, and CSA certification underscores its compliance with safety regulations globally.
Designed with practicality in mind, this pushbutton features a flush actuator type within a round bezel shape crafted from durable plastic in black color. The diameter measures 22 mm which aligns perfectly with standard cutout sizes ensuring ease during panel installation.
Rated insulation voltage stands at 600 V providing excellent electrical isolation capabilities while maintaining an impressive insulation resistance of 100 MOhm further enhancing safety parameters under operation conditions upholding rated thermal current capacity up till ten amperes indicating capability handling substantial loads effectively when required
Overall these specifications make it clear why professionals opt for HW series models when reliability matters most Manufacturer Part Number:
