IDECHW1L-M1F10M4R-K Illuminated Pushbutton Kit Transformer 22mm Flush Momentary Red 240/6VAC/DC 1NO

Product Code: HW1L-M1F10M4R-K

  • Illuminated pushbutton with momentary function
  • IP65 front protection for durability
  • Operates in -25 to 60°C temperature range
  • UL, CE, CSA, TUV certified for safety compliance
  • Long mechanical life of 5 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

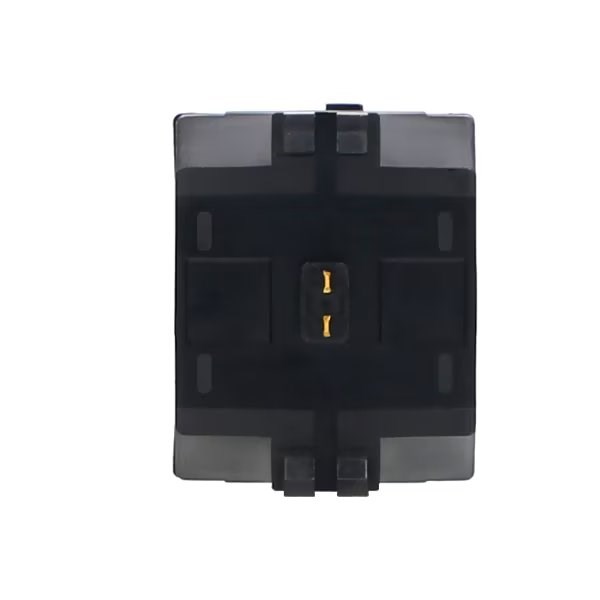

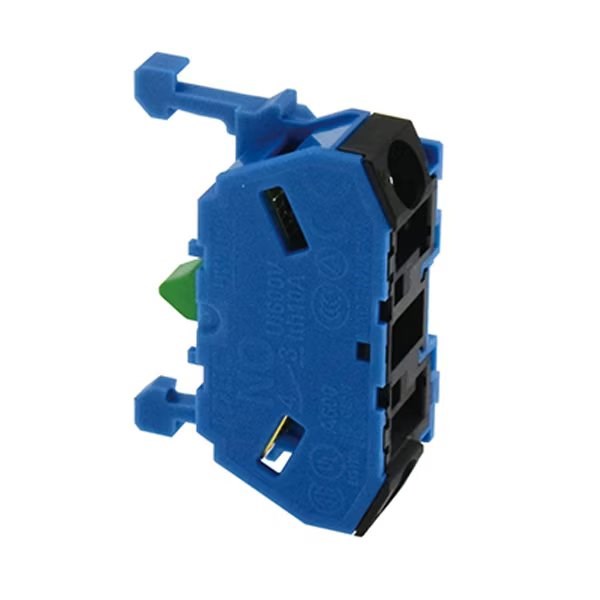

Components Contact Block Adaptor Lead Holder 1 NO Contact Block Round Flush Lens Round Momentary Operator Safety Lever Lock Transformer
Product Type Pushbutton Kit
Brand IDEC
Series HW
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Illumination Circuit Transformer
Insulation Resistance 100 MOhm
Lamp Colour Red
Lamp Type Without Lamp
Mechanical Life 5 million Operations
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Rated Voltage 240/6 VAC/DC
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified, TUV approved
Terminal Type Screw

Description

The IDEC HW1L-M1F10M4R-K is a high-quality illuminated pushbutton featuring a momentary red flush design for clear visibility and easy operation. This pushbutton is equipped with finger-safe (IP20) screw terminals that accept ring, fork, ferrule terminals, and bare wires, ensuring versatile and secure connections. It complies with EN418 standards for emergency stops, providing positive action in critical situations. Additionally, it is UL listed, CSA certified, TUV approved, and CE marked to meet rigorous safety and quality requirements.
