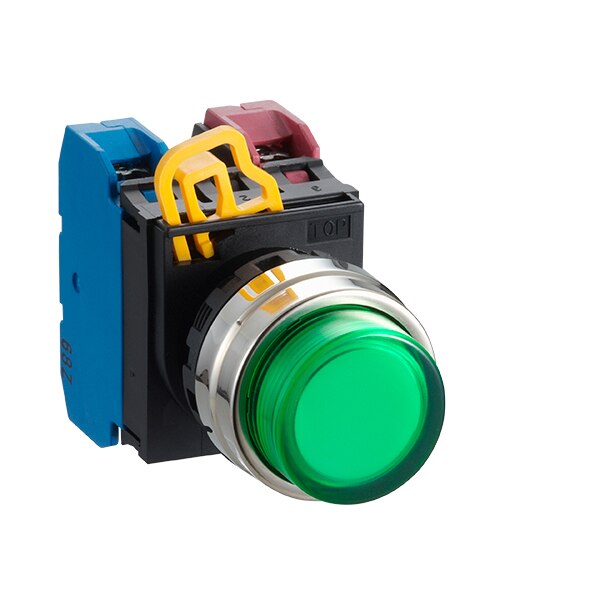

The YW Series pushbutton is a robust and reliable choice for industrial and commercial applications, designed to meet the demanding requirements of various operational environments. With its illuminated feature, this pushbutton ensures visibility even in low-light conditions, thanks to the built-in green LED lamp.
Operating at a rated voltage of 110 VAC/DC, it offers flexibility across different electrical systems. Its dimensions—30 mm width, 41.4 mm height, and 64.8 mm depth—make it compact yet functional for diverse installations. The device is engineered to withstand challenging conditions with an operational temperature range from -20 to 55 degrees Celsius and storage capabilities extending from -40 to 85 degrees Celsius.
In terms of durability, the pushbutton boasts an impressive mechanical life: up to 5 million operations for a single contact block and 1 million operations for a double contact block. This longevity makes it suitable for high-frequency usage scenarios. The actuator type is extended with a diameter of 22 mm, aligning with standard cutout sizes, simplifying integration into existing systems.
Safety and reliability are further enhanced by its compliance with international standards such as cULus listing, CE marking, UKCA certification, and CCC certification. It features an IP65 degree of protection on the front side against dust and water ingress while maintaining IP20 protection at the terminal level.
The pushbutton’s vibration resistance ranges between 5-55 Hz and shock resistance measures at 10 g/ms ensuring resilience in dynamic environments where mechanical stressors are present. With an insulation resistance of 100 MOhm and a rated insulation voltage of up to 600 V, it provides robust electrical isolation safeguarding against potential short circuits or faults.
Its contact configuration includes two normally open (2NO) contacts supporting momentary function operations which are ideal for applications requiring brief activation signals. The bezel material crafted from metal adds both aesthetic appeal and structural integrity.
Designed with user safety in mind, this device operates efficiently within humidity levels ranging from 45% to 85%. Additionally, it supports a rated continuous current of up to 10 A accommodating moderate power demands typical in many control systems.
Overall, this YW Series pushbutton stands out as a dependable component suited for varied technical setups where performance consistency is paramount without compromising on quality or safety standards.
