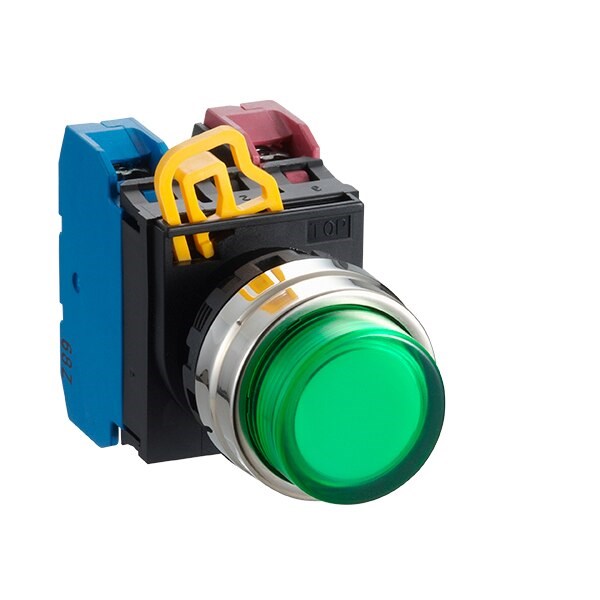

When it comes to industrial and commercial applications, reliability and durability are paramount. The YW Series Pushbutton is designed with these priorities in mind, offering a robust solution for various control panel needs. This pushbutton features a 22 mm diameter extended actuator that fits seamlessly into a standard cutout size of 22 mm, ensuring compatibility with existing setups.
Operating at a rated voltage of 24 VAC/DC, this pushbutton is illuminated by an amber built-in LED, providing clear visibility under various lighting conditions. Its illumination feature enhances operational clarity without compromising energy efficiency.
The YW Series Pushbutton stands out with its impressive mechanical life expectancy; it can handle up to 5 million operations with a single contact block and up to 1 million operations with a double contact block. This longevity makes it suitable for high-frequency use environments where durability is crucial.
In terms of environmental resilience, the pushbutton operates efficiently within temperatures ranging from -20°C to 55°C and can be stored between -40°C and 85°C. It also withstands humidity levels of 45-85%, making it adaptable to diverse climatic conditions.
Safety standards are thoroughly met as the product is cULus listed, CE Marked, UKCA Certified, and CCC Certified. The degree of protection offered includes IP65 at the front end—ideal for dust-tight environments—and IP20 at the terminal end for internal safety.
For those concerned about vibration or shock resistance, this pushbutton offers reliable performance under vibrations ranging from 5-55 Hz and can endure shocks up to 10 g/ms. With an insulation resistance of 100 MOhm and a rated insulation voltage of up to 600 V, electrical safety is assured.
Its metal bezel material adds an extra layer of robustness while maintaining aesthetic appeal on control panels. The contact configuration includes both normally open (NO) and normally closed (NC) contacts (1NO+1NC), allowing flexible integration into complex circuits.
Rated for continuous current handling up to 10 A, this pushbutton meets rigorous demands in industrial settings without compromising performance quality or safety standards.
In summary, the YW Series Pushbutton combines functionality with resilience across multiple parameters—mechanical endurance, environmental adaptability, safety certifications—all wrapped in an ergonomic design fit for modern industrial applications.
