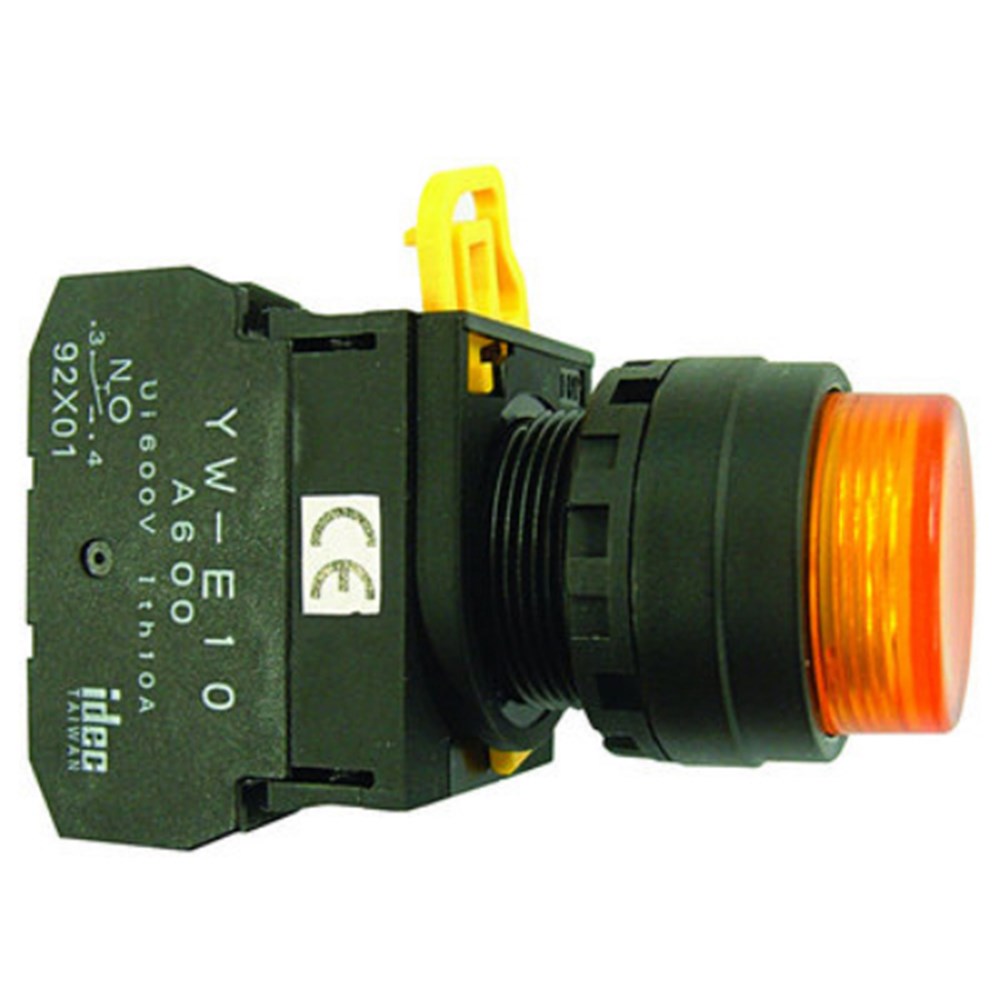

IDECYW1L-M2E10Q7A Illuminated Pushbutton 22mm Extended Momentary Amber 24VAC/DC 1NO

Product Code: YW1L-M2E10Q7A

  • Illuminated pushbutton with amber incandescent lamp
  • Robust IP65 front protection, IP20 terminal
  • Extended actuator with 1NO contact configuration
  • Mechanical life: up to 5 million operations
  • Operates in -20 to 55°C, storage -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 64.8D
Operating Voltage DC (V) 24
Operating Voltage AC (V) 24
No. of Normally-open Contacts 1
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Extended
Bezel Material Plastic
Colour Amber
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 64.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Amber
Lamp Type Incandescent
Mechanical Life 5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Model Momentary Extended-Incandescent Lamp
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Rated Voltage 24 VAC/DC
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1L-M2E10Q7A is an illuminated pushbutton featuring a momentary action and incandescent amber lighting. Designed for 24V AC/DC applications, it includes a single normally open (NO) contact. This compact and lightweight unit offers space-saving with its 10mm thick contact blocks and easy installation due to its separate contact block design. The pushbutton also features a durable metal bezel and is part of the versatile YW series, which includes unibody pilot lights and key selector switches.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
