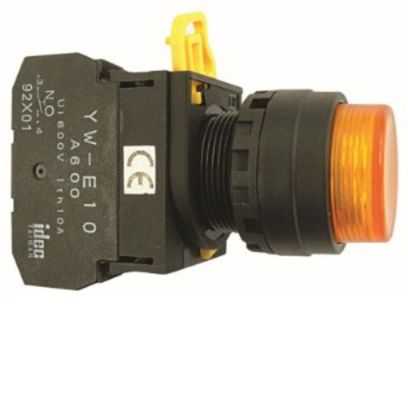

The YW Series pushbutton is a reliable and durable choice for industrial and commercial applications. Designed to meet the rigorous demands of various environments, this pushbutton offers functionality with its momentary action, making it suitable for operations that require quick and temporary activation.
Operating at a rated voltage of 24 VAC/DC, this illuminated pushbutton ensures visibility even in low-light conditions thanks to its built-in red LED lamp. The extended actuator type provides ease of use, while the contact configuration includes a 1NC (normally closed) contact made from silver for optimal conductivity and durability.
With dimensions of 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, the compact design allows for seamless integration into control panels or machinery without occupying excessive space. The pushbutton fits a cutout size of 22 mm diameter, which is standard for many installations.
Built to withstand harsh conditions, the YW Series maintains operational integrity within temperatures ranging from -20°C to 55°C and can be stored safely between -40°C to 85°C. It features an impressive mechanical life span: up to five million operations with a single contact block or one million operations with a double contact block.
In terms of resistance capabilities, it boasts vibration resistance from frequencies between 5-55 Hz and shock resistance rated at 10 g/ms. This makes it suitable for environments where machinery might cause vibrations or sudden impacts.
Safety is paramount; hence the front degree of protection is IP65-rated ensuring dust-tight sealing and protection against water jets. The terminal degree protection is IP20-rated providing basic finger protection against accidental contact with live parts when installed correctly using screw terminals.
Compliance with international standards such as cULus listing, CE marking, UKCA certification, and CCC certification underscores its global applicability across different markets adhering to stringent safety norms.
The bezel material crafted from plastic contributes to its lightweight yet robust construction while maintaining insulation resistance at an impressive level of 100 MOhm. Rated continuous current stands at an ample capacity of up to 10 A accommodating diverse electrical loads effectively.
Overall humidity tolerance ranges from 45% to 85%, ensuring reliability under varying atmospheric conditions typical in industrial settings across Australia’s diverse climate zones.
This comprehensive suite of features makes the YW Series pushbutton not only versatile but also dependable over long-term usage scenarios—ideal for those seeking quality assurance coupled with performance consistency in their electrical components arsenal.
