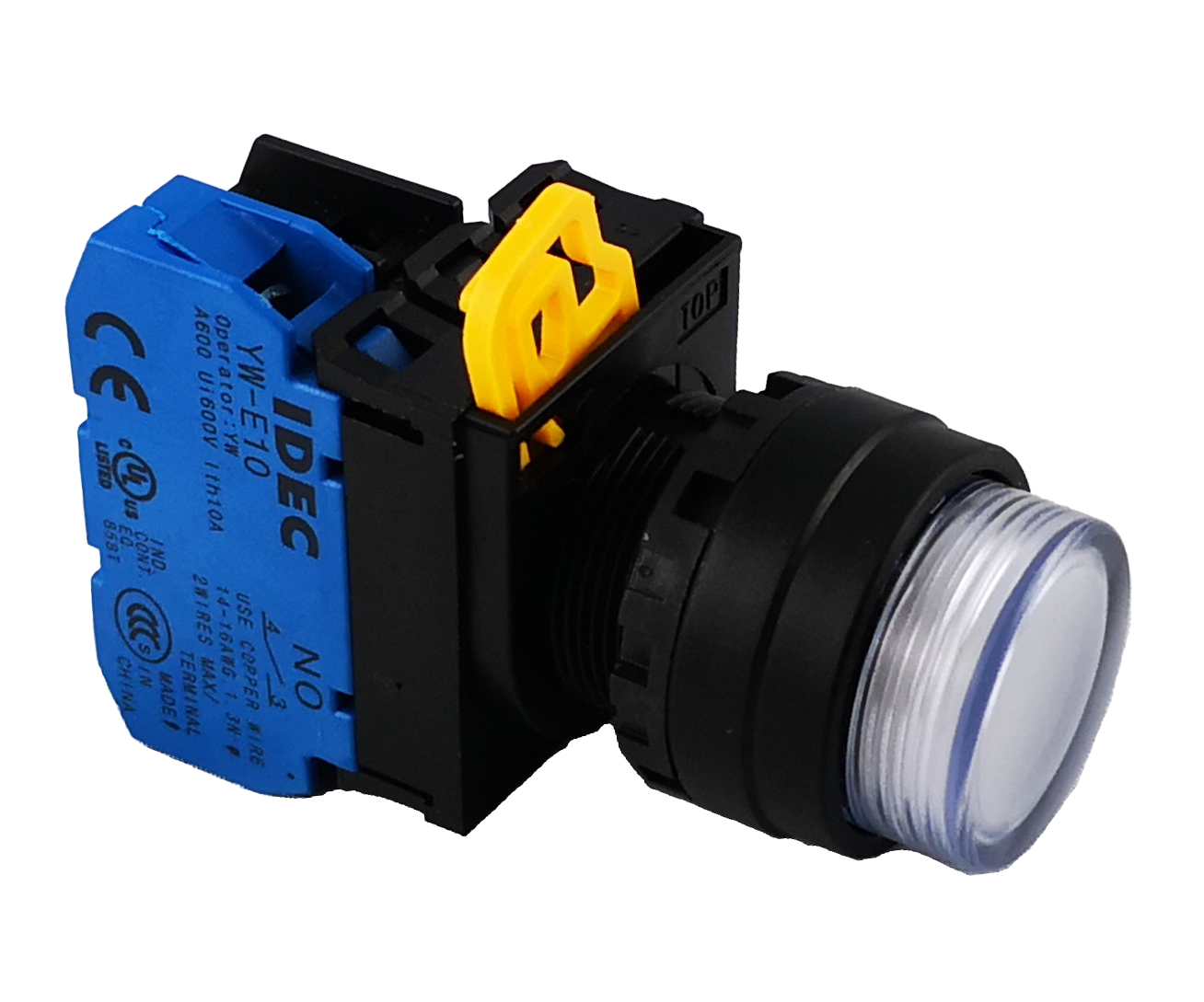

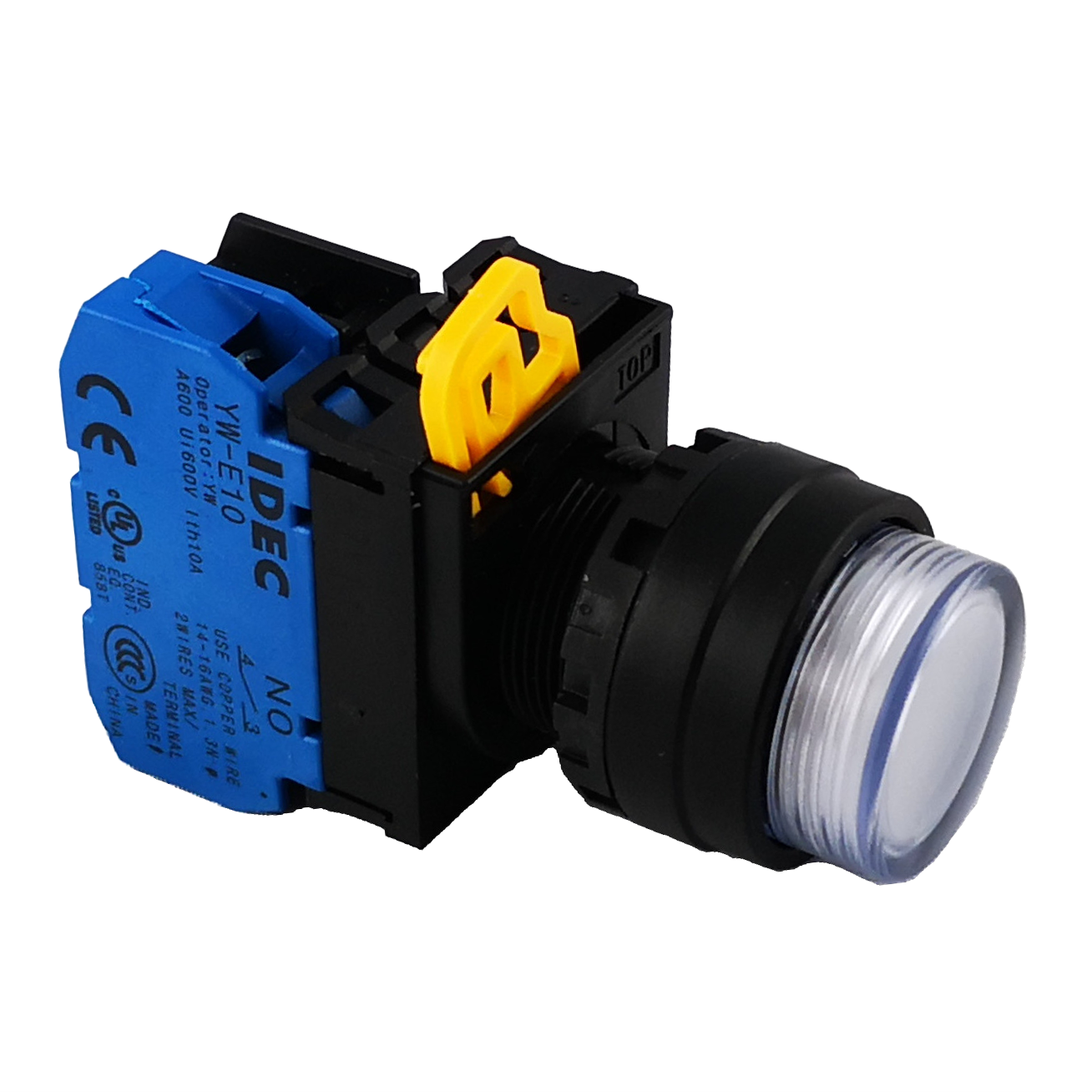

IDECYW1L-M2E10Q4W Illuminated Pushbutton 22mm Extended Momentary White 24VAC/DC 1NO

Product Code: YW1L-M2E10Q4W

  • Illuminated pushbutton with built-in LED
  • Durable with 5 million ops mech. life
  • IP65 front protection, ideal for harsh env.
  • Operates at -20 to 55°C, 24 VAC/DC
  • cULus listed, CE & UKCA certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 64.8D
Operating Voltage DC (V) 24
Operating Voltage AC (V) 24
No. of Normally-open Contacts 1
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Extended
Bezel Material Plastic
Colour White
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 64.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour White
Lamp Type Built-in LED
Mechanical Life 5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Model Momentary Extended-LED Lamp
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Rated Voltage 24 VAC/DC
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1L-M2E10Q4W is a compact, illuminated pushbutton featuring a white LED and designed for 24V AC/DC systems. Its momentary switch action includes 1 Normally Open (NO) contact. The space-efficient design boasts a slim 10mm contact block, enhancing installation in tight spaces. The removable operator and separate contact block facilitate straightforward installation and maintenance. This lightweight pushbutton with a plastic bezel is an ideal solution for applications requiring clear visibility and easy operation.
