IDECHW2L-M1F10G-K Illuminated Pushbutton Kit 22mm Flush Momentary Green 1NO

Product Code: HW2L-M1F10G-K

  • Illuminated pushbutton with flush actuator
  • IP65 front protection for durability
  • Operates at -25 to 60°C, 50/60 Hz
  • Silver contact material, 1NO configuration
  • UL, CE, CSA certified for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

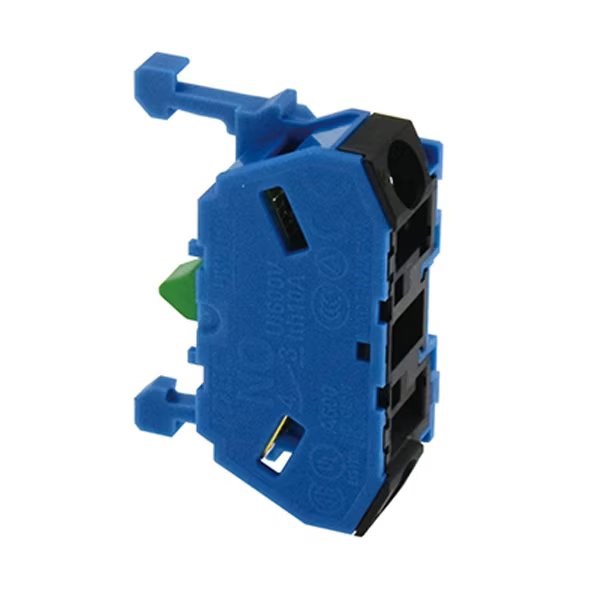

Components Lens Operator Ring Lamp Holder Full Voltage Adaptor 1 NO Contact Block Contact Block Mounting Adaptor Safety Lever Lock
No. of Normally-open Contacts 1
Terminal Shape Screw Terminal
Product Type Pushbutton Kit
Brand IDEC
Series HW
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Square
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Illumination Colour Green
Insulation Resistance 100 MOhm
Lamp Colour Green
Lamp Type Without Lamp
Mechanical Life 5 million Operations
Operational Temperature -25 to 60 deg C
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified
Terminal Type Screw

Description

The IDEC HW2L-M1F10G-K is a high-quality illuminated pushbutton designed for reliable momentary operation. This square flush green button features a durable plastic bezel and operates at full voltage. It comes equipped with 1 Normally Open (NO) contact, offering precise control in various applications. Ideal for use in control panels and interfaces where quick visual feedback is necessary, this pushbutton ensures efficient operation and easy recognition in demanding environments.
