Brand	IDEC
Coil Voltage AC/DC (V)	220-240
Contact Configuration	SPDT
Contact Material	AgNi (Au plated)
Degree of Protection	IP20
Dielectrical Strength (kV)	4 (Between Contact and Coil ), 1 (Between Poles)
Dimensions (mm)	6 (Width)
Mounting Type	DIN Rail
No. of Poles	1P
Operating Humidity	5 to 85% (no condensation)
Operational Temperature Range (°C)	-40 to +55
Rated Current (A)	6
Series	RV8H
Terminal Type	Screw
Weight (kg)	0.03

Relays

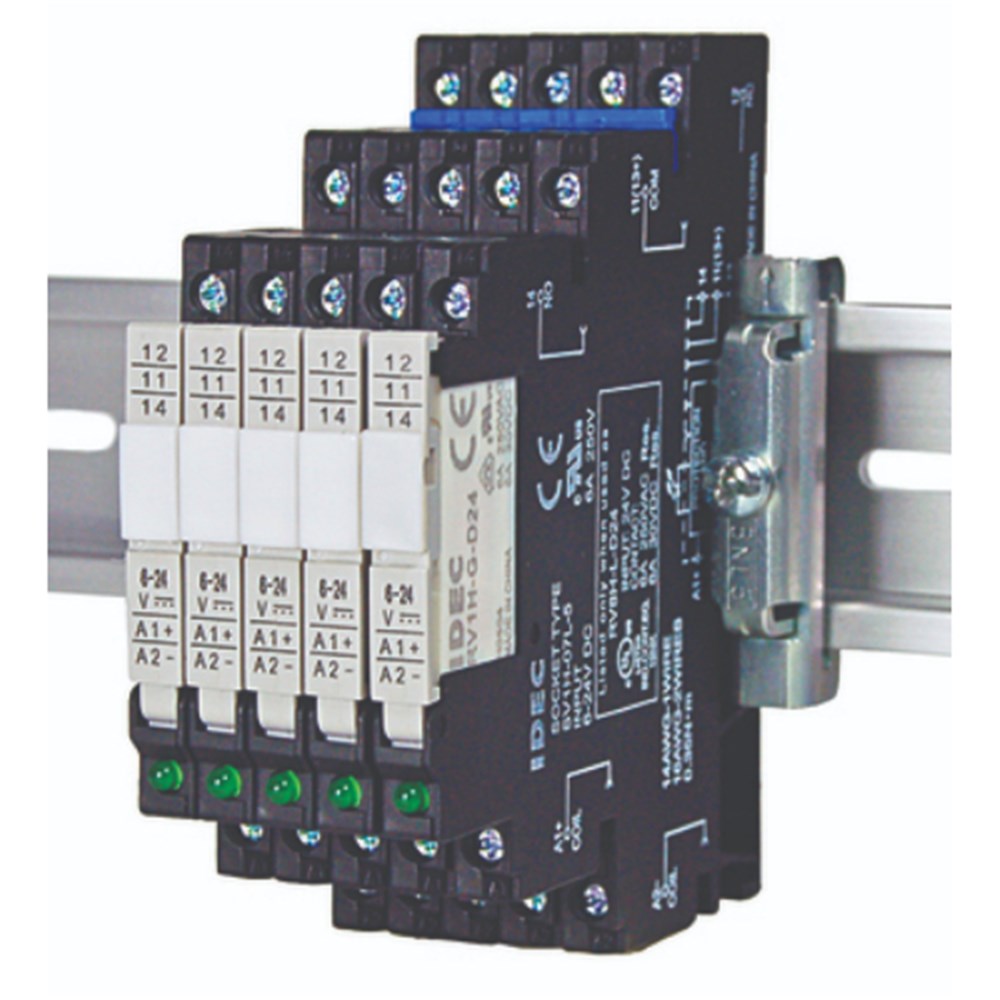

IDEC INTERFACE RELAY 6mm SPDT 220-240V AC/DC SCREW TYPE 6A CONTACT RV8H-L-AD240
