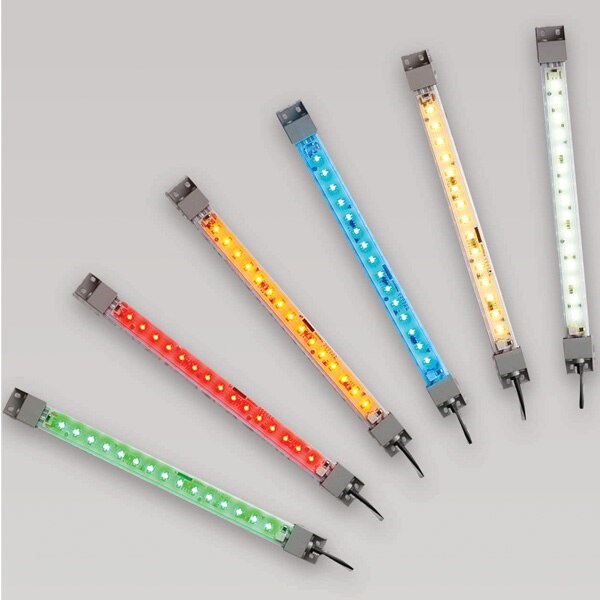

IDEC LF1B-NB4P2SHY23M Illumination Unit White IP65 210mm D 3m L Cable 24V

Product Code: LF1B-NB4P2SHY23M

  • Energy-efficient 2W LED unit
  • Durable IP65 protection rating
  • Operates in -30 to 55°C range
  • Yellow illumination for visibility
  • Includes 3m cable for flexibility
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 27.5W x 16H x 210D
Operational Temperature Range (°C) -30 to 55
Power Consumption (W) 2
Cable Length (m) 3
Rated Operational Voltage (V) 24
Weight (g) 125
Operating Humidity 45 to 85%
Resistance to Vibrations 5 to 55Hz
Resistance to Shock (m/s²) 1000
Voltage Range (DC) 21.6 to 26.4
Product Type Illumination Unit
Brand IDEC
Series LF1B-N
Cable Length 3 m
Cover Colour White
Degree of Protection IP65
Depth 210 mm
Humidity 45-85%
Illumination Colour Yellow
Operational Temperature -30 to 55 deg C
Rated Current 140 mA
Rated Power 2 W
Rated Voltage 24 V
Standards and Approvals CE, cULus, UL2108, UL8750, CSA C22.2 No. 250.0 EN55015, FCC Part 15/Class B, EN61547
Weight 125 g

Description

The IDEC LF1B-NB4P2SHY23M is a durable, industrial-grade light with a yellow and white cover, designed to provide reliable illumination in harsh environments. With an IP65 rating, it ensures protection against dust and water ingress. The unit measures 210mm in length and comes with a 3-meter cable for easy installation. Ideal for various industrial applications, this light offers robust performance and longevity.
