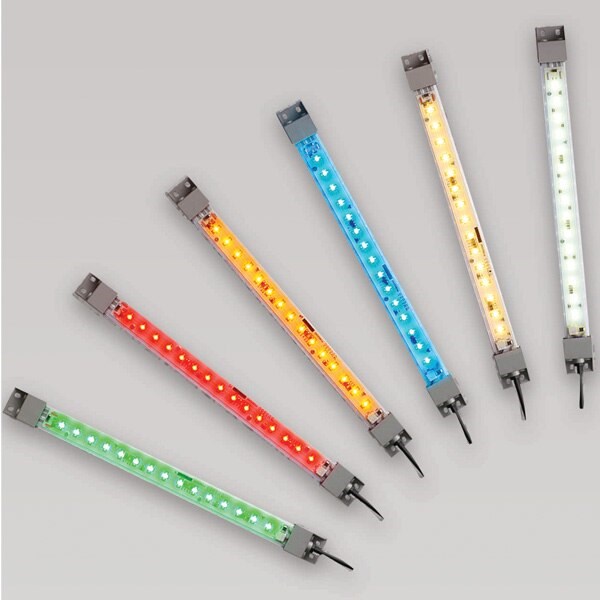

IDEC LF1B-ND3P2SHY21M Illumination Unit Clear IP65 580mm D 1m L Cable 24V

Product Code: LF1B-ND3P2SHY21M

  • Energy-efficient 5.8W LED unit
  • IP65 rated for dust/water resistance
  • Operates in -30 to 55°C environments
  • Clear cover with yellow illumination
  • CE, cULus, UL & FCC certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 27.5W x 16H x 580D
Operational Temperature Range (°C) -30 to 55
Power Consumption (W) 5.8
Cable Length (m) 1
Rated Operational Voltage (V) 24
Weight (g) 255
Operating Humidity 45 to 85%
Resistance to Vibrations 5 to 55Hz
Resistance to Shock (m/s²) 1000
Voltage Range (DC) 21.6 to 26.4
Product Type Illumination Unit
Brand IDEC
Series LF1B-N
Cable Length 1 m
Cover Colour Clear
Degree of Protection IP65
Depth 580 mm
Humidity 45-85%
Illumination Colour Yellow
Operational Temperature -30 to 55 deg C
Rated Current 420 mA
Rated Power 5.8 W
Rated Voltage 24 V
Standards and Approvals CE, cULus, UL2108, UL8750, CSA C22.2 No. 250.0 EN55015, FCC Part 15/Class B, EN61547
Weight 255 g

Description

The IDEC LF1B-ND3P2SHY21M is a durable, light-industrial LED lighting solution with a clear yellow cover. At 580mm in length and designed for 1-meter applications, it provides bright and efficient illumination. Ideal for various industrial settings, this LED light ensures consistent performance with its robust design.
